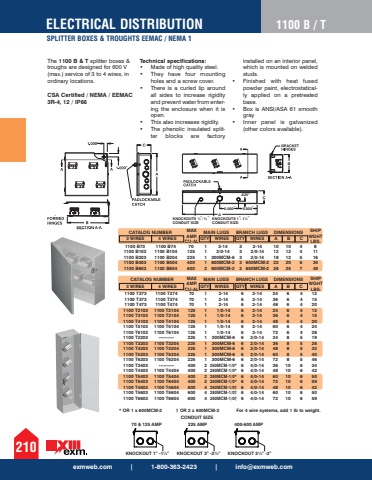

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 1100 B / TSPLITTER BOXES & TROUGHTS EEMAC / NEMA 1%u201d%u201d6.000KNOCKOUTS 1 - 1%u00bcCONDUIT SIZEKNOCKOUTS %u00bd - %u00beCONDUIT SIZEBAC6.000.625%u201d %u201d%u201d%u201d%u201d %u201d %u201dKNOCKOUT 1%u201d -1%u00bc%u201dCONDUIT SIZE70 & 125 AMPKNOCKOUT 2%u201d -2%u00bd%u201d225 AMPKNOCKOUT 2%u00bd%u201d -3%u201d400-600 AMPThe 1100 B & T splitter boxes & troughs are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. CSA Certified / NEMA / EEMAC 3R-4, 12 / IP66 Technical specifications:%u2022 Made of high quality steel.%u2022 They have four mountingholes and a screw cover.%u2022 There is a curled lip aroundall sides to increase rigidityand prevent water from entering the enclosure when it isopen.%u2022 This also increases rigidity.%u2022 The phenolic insulated splitter blocks are factoryinstalled on an interior panel, which is mounted on welded studs. %u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Box is ANSI/ASA 61 smoothgray%u2022 Inner panel is galvanized(other colors available).CATALOG NUMBER3 WIRES 4 WIRES1100 B73 1100 B74 70 1 2-14 3 2-14 10 10 4 81100 B103 1100 B104 125 1 2/0-14 3 2/0-14 12 12 4 111100 B203 1100 B204 225 1 300MCM-6 3 2/0-14 18 12 5 161100 B403 1100 B404 400 1 600MCM-2 3 600MCM-2 22 20 6 341100 B603 1100 B604 600 2 600MCM-2 2 600MCM-2 26 25 7 491100 T273 1100 T274 70 1 2-14 6 2-14 24 6 4 121100 T373 1100 T374 70 1 2-14 6 2-14 36 6 4 151100 T473 1100 T474 70 1 2-14 6 2-14 48 6 4 201100 T2103 1100 T2104 125 1 1/0-14 6 2-14 24 6 4 121100 T3103 1100 T3104 125 1 1/0-14 6 2-14 36 6 4 151100 T4103 1100 T4104 125 1 1/0-14 6 2-14 48 6 4 201100 T5103 1100 T5104 125 1 1/0-14 6 2-14 60 6 4 241100 T6103 1100 T6104 125 1 1/0-14 6 2-14 72 6 4 281100 T2203 ---------- 225 1 300MCM-6 6 2/0-14 24 8 5 191100 T3203 1100 T3204 225 1 300MCM-6 6 2/0-14 36 8 5 261100 T4203 1100 T4204 225 1 300MCM-6 6 2/0-14 48 8 5 321100 T5203 1100 T5204 225 1 300MCM-6 6 2/0-14 60 8 5 401100 T6203 1100 T6204 225 1 300MCM-6 6 2/0-14 72 8 5 461100 T3403 ---------- 400 2 250MCM-1/0* 6 4/0-14 36 10 6 341100 T4403 1100 T4404 400 2 250MCM-1/0* 6 4/0-14 48 10 6 421100 T5403 1100 T5404 400 2 250MCM-1/0* 6 4/0-14 60 10 6 501100 T6403 1100 T6404 400 2 250MCM-1/0* 6 4/0-14 72 10 6 591100 T4603 1100 T4604 600 4 250MCM-1/0%u2020 6 4/0-14 48 10 6 421100 T5603 1100 T5604 600 4 250MCM-1/0%u2020 6 4/0-14 60 10 6 501100 T6603 1100 T6604 600 4 250MCM-1/0%u2020 6 4/0-14 72 10 6 59 * OR 1 x 600MCM-2 %u2020 OR 2 x 600MCM-2 For 4 wire systems, add 1 lb to weight. CATALOG NUMBER3 WIRES 4 WIRESA B CDIMENSIONS SHIP WGHT LBS. QTY WIRESMAX AMP. CU-ALMAIN LUGS BRANCH LUGSMAX AMP. CU-ALSHIP WGHT LBS.MAIN LUGS BRANCH LUGS DIMENSIONSQTY WIRESQTY WIRES QTY WIRES A B C
