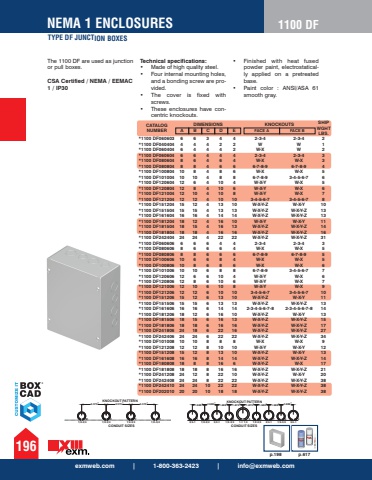

3.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/41.688%u201d 1.688%u201d 1.688%u201dKNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/41.875%u201d 1.875%u201d 1.688%u201d 1.688%u201d 1.688%u201d3/4-1 3/4-1 1 /4 -1 1 3/4-1 3/4-11 2 3 4 5 6 7 8 9196exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 DFTYPE DF JUNCTION BOXESThe 1100 DF are used as junction or pull boxes. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Four internal mounting holes, and a bonding screw are provided. %u2022 The cover is fixed with screws. %u2022 These enclosures have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.FACE A FACE B*1100 DF060603 66344 2-3-4 2-3-4 2 *1100 DF040404 44422 W W 1 *1100 DF060404 6 4 4 4 2 W-X W 2 *1100 DF060604 66444 2-3-4 2-3-4 3 *1100 DF080604 8 6 4 6 4 W-X W-X 3 *1100 DF080804 88466 6-7-8-9 6-7-8-9 4 *1100 DF100804 10 8 4 8 6 W-X W-X 5 *1100 DF101004 10 10 4 8 8 6-7-8-9 3-4-5-6-7 6 *1100 DF120604 12 6 4 10 4 W-X-Y W-X 5 *1100 DF120804 12 8 4 10 6 W-X-Y W-X 6 *1100 DF121004 12 10 4 10 8 W-X-Y W-X 7 *1100 DF121204 12 12 4 10 10 3-4-5-6-7 3-4-5-6-7 8 *1100 DF151204 15 12 4 13 10 W-X-Y-Z W-X-Y 10 *1100 DF151504 15 15 4 13 13 W-X-Y-Z W-X-Y-Z 13 *1100 DF161604 16 16 4 14 14 W-X-Y-Z W-X-Y-Z 13 *1100 DF181204 18 12 4 16 10 W-X-Y W-X-Y 11 *1100 DF181504 18 15 4 16 13 W-X-Y-Z W-X-Y-Z 14 *1100 DF181804 18 18 4 16 16 W-X-Y-Z W-X-Y-Z 16 *1100 DF242404 24 24 4 22 22 W-X-Y-Z W-X-Y-Z 31 *1100 DF060606 66644 2-3-4 2-3-4 3 *1100 DF080606 8 6 6 6 4 W-X W-X 5 *1100 DF080806 88666 6-7-8-9 6-7-8-9 5 *1100 DF100606 10 6 6 8 4 W-X W-X 5 *1100 DF100806 10 8 6 8 6 W-X W-X 6 *1100 DF101006 10 10 6 8 8 6-7-8-9 3-4-5-6-7 7 *1100 DF120606 12 6 6 10 4 W-X-Y W-X 6 *1100 DF120806 12 8 6 10 6 W-X-Y W-X 7 *1100 DF121006 12 10 6 10 8 W-X-Y W-X 9 *1100 DF121206 12 12 6 10 10 3-4-5-6-7 3-4-5-6-7 10 *1100 DF151206 15 12 6 13 10 W-X-Y-Z W-X-Y 11 *1100 DF151506 15 15 6 13 13 W-X-Y-Z W-X-Y-Z 13 *1100 DF161606 16 16 6 14 14 2-3-4-5-6-7-8 2-3-4-5-6-7-8 14 *1100 DF181206 18 12 6 16 10 W-X-Y-Z W-X-Y 13 *1100 DF181506 18 15 6 16 13 W-X-Y-Z W-X-Y-Z 15 *1100 DF181806 18 18 6 16 16 W-X-Y-Z W-X-Y-Z 17 *1100 DF241806 24 18 6 22 16 W-X-Y-Z W-X-Y-Z 27 *1100 DF242406 24 24 6 22 22 W-X-Y-Z W-X-Y-Z 34 *1100 DF101008 10 10 8 8 8 W-X W-X 9 *1100 DF121208 12 12 8 10 10 W-X-Y W-X-Y 12 *1100 DF151208 15 12 8 13 10 W-X-Y-Z W-X-Y 13 *1100 DF161608 16 16 8 14 14 W-X-Y-Z W-X-Y-Z 14 *1100 DF180808 18 8 8 16 6 W-X-Y-Z W-X 17 *1100 DF181808 18 18 8 16 16 W-X-Y-Z W-X-Y-Z 21 *1100 DF241208 24 12 8 22 10 W-X-Y-Z W-X-Y 20 *1100 DF242408 24 24 8 22 22 W-X-Y-Z W-X-Y-Z 38 *1100 DF242410 24 24 10 22 22 W-X-Y-Z W-X-Y-Z 38 *1100 DF202010 20 20 10 18 18 W-X-Y-Z W-X-Y-Z 38KNOCKOUTSp.198 p.617
