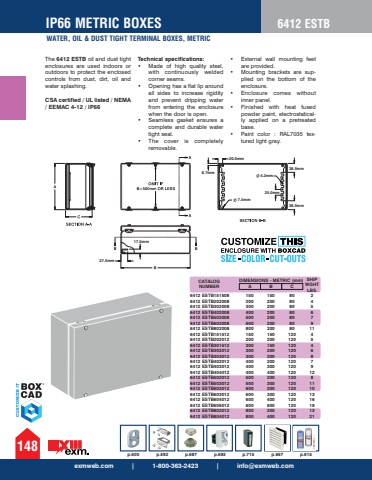

p.600 p.592 p.687 p.693 p.715 p.657 p.615exmweb.com | 1-800-363-2423 | [email protected] METRIC BOXESWATER, OIL & DUST TIGHT TERMINAL BOXES, METRIC1486412 ESTBThe 6412 ESTB oil and dust tight enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA certified / UL listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The cover is completelyremovable.%u2022 External wall mounting feetare provided.%u2022 Mounting brackets are supplied on the bottom of theenclosure.%u2022 Enclosure comes withoutinner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : RAL7035 textured light gray.CATALOG NUMBER A B CDIMENSIONS - METRIC (mm)6412 ESTB151508 150 150 80 2 6412 ESTB202008 200 200 80 4 6412 ESTB302008 300 200 80 5 6412 ESTB402008 400 200 80 6 6412 ESTB502008 500 200 80 7 6412 ESTB602008 600 200 80 9 6412 ESTB802008 800 200 80 11 6412 ESTB151512 150 150 120 4 6412 ESTB202012 200 200 120 5 6412 ESTB301512 300 150 120 4 6412 ESTB302012 300 200 120 6 6412 ESTB303012 300 300 120 8 6412 ESTB402012 400 200 120 7 6412 ESTB403012 400 300 120 9 6412 ESTB404012 400 400 120 12 6412 ESTB502012 500 200 120 8 6412 ESTB503012 500 300 120 11 6412 ESTB602012 600 200 120 10 6412 ESTB603012 600 300 120 13 6412 ESTB604012 600 400 120 16 6412 ESTB606012 600 600 120 19 6412 ESTB802012 800 200 120 13 6412 ESTB804012 800 400 120 21SHIP WGHT LBS.27.5mm17.5mm8.7mm20.0mm4.2mm25.0mm38.5mm38.5mm7.4mm
