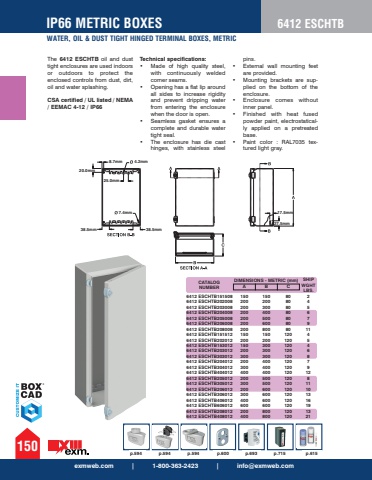

CATALOG NUMBER A B CDIMENSIONS - METRIC (mm) SHIP WGHT LBS.6412 ESCHTB151508 150 150 80 2 6412 ESCHTB202008 200 200 80 4 6412 ESCHTB203008 200 300 80 5 6412 ESCHTB204008 200 400 80 6 6412 ESCHTB205008 200 500 80 7 6412 ESCHTB206008 200 600 80 9 6412 ESCHTB208008 200 800 80 11 6412 ESCHTB151512 150 150 120 4 6412 ESCHTB202012 200 200 120 5 6412 ESCHTB153012 150 300 120 4 6412 ESCHTB203012 200 300 120 6 6412 ESCHTB303012 300 300 120 8 6412 ESCHTB204012 200 400 120 7 6412 ESCHTB304012 300 400 120 9 6412 ESCHTB404012 400 400 120 12 6412 ESCHTB205012 200 500 120 8 6412 ESCHTB305012 300 500 120 11 6412 ESCHTB206012 200 600 120 10 6412 ESCHTB306012 300 600 120 13 6412 ESCHTB406012 400 600 120 16 6412 ESCHTB606012 600 600 120 19 6412 ESCHTB208012 200 800 120 13 6412 ESCHTB408012 400 800 120 21 p.594 p.594 p.594 p.600 p.693 p.715 p.615exmweb.com | 1-800-363-2423 | [email protected] METRIC BOXESWATER, OIL & DUST TIGHT HINGED TERMINAL BOXES, METRIC1506412 ESCHTBThe 6412 ESCHTB oil and dust tight enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA certified / UL listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelpins. %u2022 External wall mounting feetare provided.%u2022 Mounting brackets are supplied on the bottom of theenclosure.%u2022 Enclosure comes withoutinner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : RAL7035 textured light gray.20.0mm8.7mm 4.2mm25.0mm7.4mm38.5mm17.5mm27.5mm38.5mm
