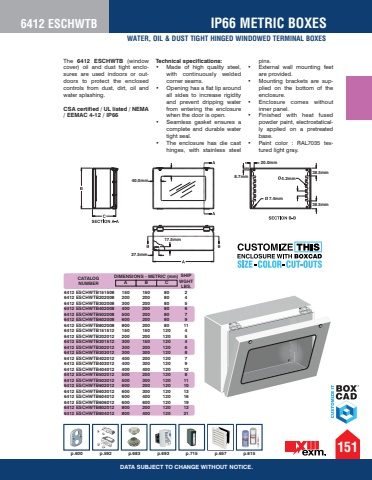

p.600 p.592 p.683 p.693 p.715 p.657 p.615151IP66 METRIC BOXESWATER, OIL & DUST TIGHT HINGED WINDOWED TERMINAL BOXES6412 ESCHWTB DATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6412 ESCHWTB (window cover) oil and dust tight enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA certified / UL listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel pins. %u2022 External wall mounting feet are provided. %u2022 Mounting brackets are supplied on the bottom of the enclosure. %u2022 Enclosure comes without inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light gray. CATALOG NUMBER A B CDIMENSIONS - METRIC (mm) SHIP WGHT LBS.6412 ESCHWTB151508 150 150 80 2 6412 ESCHWTB202008 200 200 80 4 6412 ESCHWTB302008 300 200 80 5 6412 ESCHWTB402008 400 200 80 6 6412 ESCHWTB502008 500 200 80 7 6412 ESCHWTB602008 600 200 80 9 6412 ESCHWTB802008 800 200 80 11 6412 ESCHWTB151512 150 150 120 4 6412 ESCHWTB202012 200 200 120 5 6412 ESCHWTB301512 300 150 120 4 6412 ESCHWTB302012 300 200 120 6 6412 ESCHWTB303012 300 300 120 8 6412 ESCHWTB402012 400 200 120 7 6412 ESCHWTB403012 400 300 120 9 6412 ESCHWTB404012 400 400 120 12 6412 ESCHWTB502012 500 200 120 8 6412 ESCHWTB503012 500 300 120 11 6412 ESCHWTB602012 600 200 120 10 6412 ESCHWTB603012 600 300 120 13 6412 ESCHWTB604012 600 400 120 16 6412 ESCHWTB606012 600 600 120 19 6412 ESCHWTB802012 800 200 120 13 6412 ESCHWTB804012 800 400 120 2140.0mm17.5mm20.0mm8.7mm7.4mm4.2mm38.5mm38.5mm27.5mm
