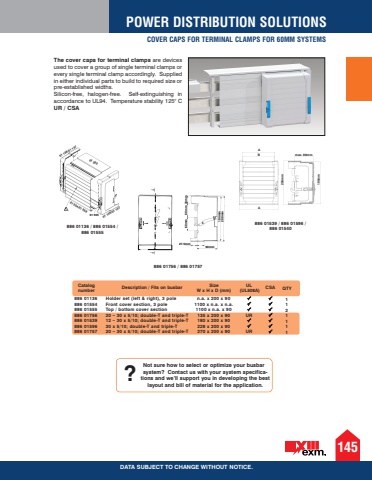

145POWER DISTRIBUTION SOLUTIONSCOVER CAPS FOR TERMINAL CLAMPS FOR 60MM SYSTEMSDATA SUBJECT TO CHANGE WITHOUT NOTICE.Catalog number Description / Fits on busbar Size W x H x D (mm) CSA UL (UL508A)886 01136 886 01554 886 01555 886 01756 886 01539 886 01596 886 01757 Holder set (left & right), 3 pole Front cover section, 3 pole Top / bottom cover section 20 %u2013 30 x 5/10; double-T and triple-T 12 %u2013 30 x 5/10; double-T and triple-T 30 x 5/10; double-T and triple-T 20 %u2013 30 x 5/10; double-T and triple-Tn.a. x 200 x 901100 x n.a. x n.a.1100 x n.a. x 90135 x 200 x 90 180 x 200 x 90 228 x 200 x 90 270 x 200 x 90 %uf050%uf050%uf050UR %uf050%uf050UR%uf050%uf050%uf050%uf050%uf050%uf050%uf050The cover caps for terminal clamps are devices used to cover a group of single terminal clamps or every single terminal clamp accordingly. Supplied in either individual parts to build to required size or pre-established widths. Silicon-free, halogen-free. Self-extinguishing in accordance to UL94. Temperature stability 125%u00b0 C UR / CSANot sure how to select or optimize your busbar system? Contact us with your system specifications and we%u2019ll support you in developing the best layout and bill of material for the application.A886 01136 / 886 01554 / 886 01555 886 01756 / 886 01757 01 554/01 55901 136/01 13701 55501 555 01 136/01 137886 01539 / 886 01596 / 886 01540 AAB max. 88mm 204mm 195mm34mm 60mm 60mm27.5mm90mm 194mm 200mm?QTY1 1 2 1 1 1 1
