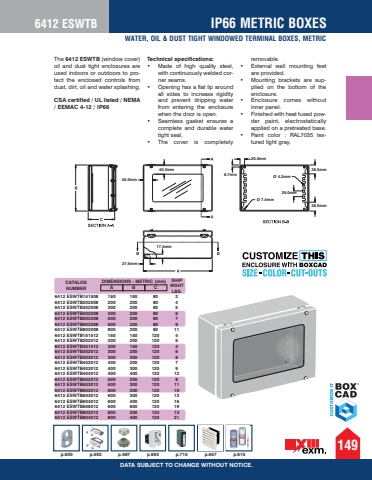

p.600 p.592 p.687 p.693 p.715 p.657 p.615149IP66 METRIC BOXESWATER, OIL & DUST TIGHT WINDOWED TERMINAL BOXES, METRIC6412 ESWTBDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6412 ESWTB (window cover) oil and dust tight enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA certified / UL listed / NEMA / EEMAC 4-12 / IP66 Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The cover is completely removable. %u2022 External wall mounting feet are provided. %u2022 Mounting brackets are supplied on the bottom of the enclosure. %u2022 Enclosure comes without inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light gray.CATALOG NUMBER A B CDIMENSIONS - METRIC (mm)6412 ESWTB151508 150 150 80 2 6412 ESWTB202008 200 200 80 4 6412 ESWTB302008 300 200 80 5 6412 ESWTB402008 400 200 80 6 6412 ESWTB502008 500 200 80 7 6412 ESWTB602008 600 200 80 9 6412 ESWTB802008 800 200 80 11 6412 ESWTB151512 150 150 120 4 6412 ESWTB202012 200 200 120 5 6412 ESWTB301512 300 150 120 4 6412 ESWTB302012 300 200 120 6 6412 ESWTB303012 300 300 120 8 6412 ESWTB402012 400 200 120 7 6412 ESWTB403012 400 300 120 9 6412 ESWTB404012 400 400 120 12 6412 ESWTB502012 500 200 120 8 6412 ESWTB503012 500 300 120 11 6412 ESWTB602012 600 200 120 10 6412 ESWTB603012 600 300 120 13 6412 ESWTB604012 600 400 120 16 6412 ESWTB606012 600 600 120 19 6412 ESWTB802012 800 200 120 13 6412 ESWTB804012 800 400 120 21 40.0mm40.0mm17.5mm8.7mm20.0mm4.2mm7.4mm25.0mm38.5mm38.5mm27.5mmSHIP WGHT LBS.
