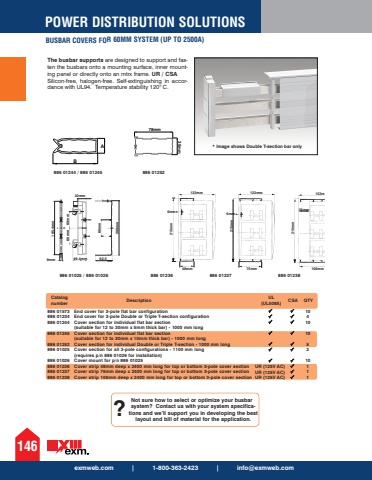

                                    146exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION SOLUTIONSBUSBAR COVERS FOR 60MM SYSTEM (UP TO 2500A)The busbar supports are designed to support and fasten the busbars onto a mounting surface, inner mounting panel or directly onto an mtrx frame. UR / CSA Silicon-free, halogen-free. Self-extinguishing in accordance with UL94. Temperature stability 120%u00b0 C. 886 01244 / 886 01245 886 01252 * Image shows Double T-section bar only886 01025 / 886 01026 886 01236 886 01237 886 01238 886 01573 886 01234 886 01244 886 01245 886 01252 886 01025 886 01026 886 01236 886 01237 886 01238End cover for 3-pole flat bar configuration End cover for 3-pole Double or Triple T-section configuration Cover section for individual flat bar section (suitable for 12 to 30mm x 5mm thick bar) - 1000 mm long Cover section for individual flat bar section (suitable for 12 to 30mm x 10mm thick bar) - 1000 mm long Cover section for individual Double or Triple T-section - 1000 mm long Cover section for all 3-pole configurations - 1100 mm long (requires p/n 886 01026 for installation) Cover mount for p/n 886 01025 Cover strip 48mm deep x 2400 mm long for top or bottom 3-pole cover section Cover strip 76mm deep x 2400 mm long for top or bottom 3-pole cover section Cover strip 106mm deep x 2400 mm long for top or bottom 3-pole cover section%uf050%uf050%uf050%uf050%uf050%uf050%uf050UR (125V AC) UR (125V AC) UR (125V AC)%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050Catalog number Description UL (UL508A) CSABA78mm35mm195.4mm60mm32mm60mm9mm 49.4mm 62.5 60mm 200mm48mm215mm6mm123mm75mm215mm6mm106mm215mm36mm123mm 153mNot sure how to select or optimize your busbar system? Contact us with your system specifications and we%u2019ll support you in developing the best ?layout and bill of material for the application.QTY10 4 10 10 5 2 10 1 1 1
