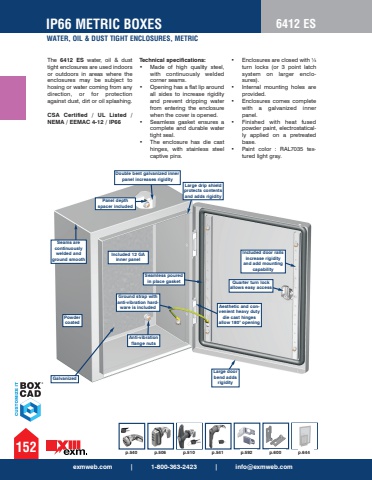

Included 12 GA inner panelPowder coated Seams are continuously welded and ground smoothLarge drip shield protects contents and adds rigidityAnti-vibration flange nutsGround strap with anti-vibration hardware is includedSeamless poured in place gasketLarge door bend adds rigidityQuarter turn lock allows easy access Included door rails increase rigidity and add mounting capabilityAesthetic and convenient heavy duty die cast hinges allow 180%u00b0 openingPanel depth spacer included Double bent galvanized inner panel increases rigidity p.540 p.506 p.510 p.541 p.592 p.600 p.644GalvanizedThe 6412 ES water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks (or 3 point latch system on larger enclosures). %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light gray. exmweb.com | 1-800-363-2423 | [email protected] METRIC BOXESWATER, OIL & DUST TIGHT ENCLOSURES, METRIC1526412 ES
