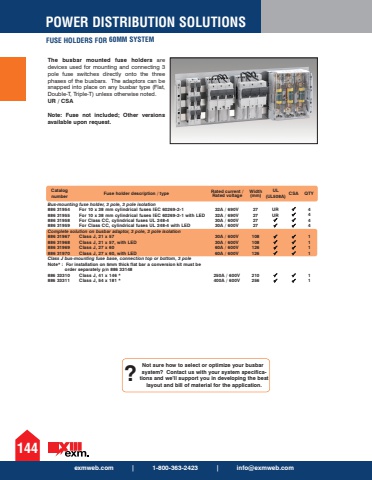

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION SOLUTIONSFUSE HOLDERS FOR 60MM SYSTEM144Catalog number Fuse holder description / type Width (mm)Rated current / Rated voltage CSA UL (UL508A) Bus-mounting fuse holder, 3 pole, 3 pole isolation886 31954 886 31955 886 31958 886 31959Complete solution on busbar adaptor, 3 pole, 3 pole isolation886 31967 886 31968 886 31969 886 31970Class J bus-mounting fuse base, connection top or bottom, 3 pole Note* : For installation on 5mm thick flat bar a conversion kit must be order separately p/n 886 33148886 33310 886 33311For 10 x 38 mm cylindrical fuses IEC 60269-2-1 For 10 x 38 mm cylindrical fuses IEC 60269-2-1 with LED For Class CC, cylindrical fuses UL 248-4 For Class CC, cylindrical fuses UL 248-4 with LED Class J, 21 x 57 Class J, 21 x 57, with LED Class J, 27 x 60 Class J, 27 x 60, with LED Class J, 41 x 146 * Class J, 54 x 181 * 32A / 690V 32A / 690V 30A / 600V 30A / 600V 30A / 600V 30A / 600V 60A / 600V 60A / 600V 250A / 600V 400A / 600V 27 27 27 27 108 108 126 126 210 256 UR UR %uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050The busbar mounted fuse holders are devices used for mounting and connecting 3 pole fuse switches directly onto the three phases of the busbars. The adaptors can be snapped into place on any busbar type (Flat, Double-T, Triple-T) unless otherwise noted. UR / CSA Note: Fuse not included; Other versions available upon request.Not sure how to select or optimize your busbar system? Contact us with your system specifications and we%u2019ll support you in developing the best ?layout and bill of material for the application.QTY4 4 4 4 1 1 1 1 1 1
