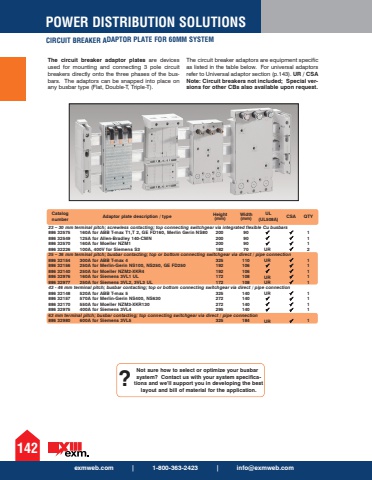

exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION SOLUTIONSCIRCUIT BREAKER ADAPTOR PLATE FOR 60MM SYSTEM142The circuit breaker adaptor plates are devices used for mounting and connecting 3 pole circuit breakers directly onto the three phases of the busbars. The adaptors can be snapped into place on any busbar type (Flat, Double-T, Triple-T). The circuit breaker adaptors are equipment specific as listed in the table below. For universal adaptors refer to Universal adaptor section (p.143). UR / CSA Note: Circuit breakers not included; Special versions for other CBs also available upon request. Not sure how to select or optimize your busbar system? Contact us with your system specifications and we%u2019ll support you in developing the best layout and bill of material for the application.Catalog number Adaptor plate description / type Width (mm) Height (mm) CSA UL (UL508A) 23 %u2013 30 mm terminal pitch; screwless contacting; top connecting switchgear via integrated flexible Cu busbars886 32575 886 32549 886 32570 886 3222635 %u2013 36 mm terminal pitch; busbar contacting; top or bottom connecting switchgear via direct / pipe connection886 32154 886 32156 886 32140 886 32976 886 32977 43 - 46 mm terminal pitch; busbar contacting; top or bottom connecting switchgear via direct / pipe connection886 32148 886 32157 886 32170 886 3297563 mm terminal pitch; busbar contacting; top connecting switchgear via direct / pipe connection886 32980160A for ABB T-max T1,T 2, GE FD160, Merlin Gerin NS80 125A for Allen-Bradley 140-CMN 160A for Moeller NZM1 100A, 400V for Siemens S3 300A for ABB T-max 4 250A for Merlin-Gerin NS100, NS250, GE FD250 250A for Moeller NZM2-XKR4 160A for Siemens 3VL1 UL 250A for Siemens 3VL2, 3VL3 UL 520A for ABB T-max 5 570A for Merlin-Gerin NS400, NS630 550A for Moeller NZM3-XKR130 400A for Siemens 3VL4 600A for Siemens 3VL5 200 200 200 182 325 192 192 172 172 325 272 272 295 325 90 90 90 70 110 106 106 108 108 140 140 140 140 184 %uf050%uf050%uf050UR UR %uf050%uf050UR UR UR %uf050%uf050%uf050UR%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050%uf050?QTY1 1 1 2 1 1 1 1 1 1 1 1 1 1
