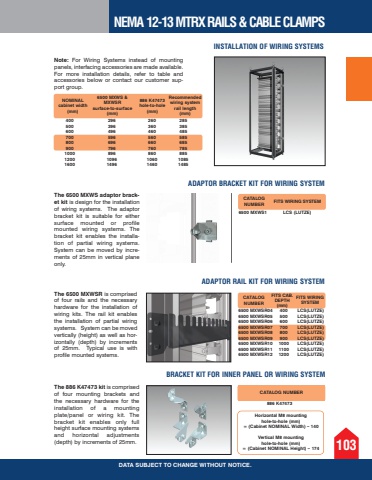

103NEMA 12-13 MTRX RAILS & CABLE CLAMPSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXWS adaptor bracket kit is design for the installation of wiring systems. The adaptor bracket kit is suitable for either surface mounted or profile mounted wiring systems. The bracket kit enables the installation of partial wiring systems. System can be moved by increments of 25mm in vertical plane only. The 6500 MXWSR is comprised of four rails and the necessary hardware for the installation of wiring kits. The rail kit enables the installation of partial wiring systems. System can be moved vertically (height) as well as horizontally (depth) by increments of 25mm. Typical use is with profile mounted systems. CATALOG NUMBER6500 MXWSR04 400 LCS(LUTZE) 6500 MXWSR05 500 LCS(LUTZE) 6500 MXWSR06 600 LCS(LUTZE) 6500 MXWSR07 700 LCS(LUTZE) 6500 MXWSR08 800 LCS(LUTZE) 6500 MXWSR09 900 LCS(LUTZE) 6500 MXWSR10 1000 LCS(LUTZE) 6500 MXWSR11 1100 LCS(LUTZE) 6500 MXWSR12 1200 LCS(LUTZE)FITS WIRING SYSTEM CATALOG NUMBER6500 MXWS1 LCS (LUTZE)FITS WIRING SYSTEMThe 886 K47473 kit is comprised of four mounting brackets and the necessary hardware for the installation of a mounting plate/panel or wiring kit. The bracket kit enables only full height surface mounting systems and horizontal adjustments (depth) by increments of 25mm. CATALOG NUMBER886 K47473 Note: For Wiring Systems instead of mounting panels, interfacing accessories are made available. For more installation details, refer to table and accessories below or contact our customer support group. 400 500 600 700 800 900 1000 1200 1600296 396 496 596 696 796 896 1096 1496260 360 460 560 660 760 860 1060 1460285 385 485 585 685 785 885 1085 1485NOMINAL cabinet width (mm)6500 MXWS & MXWSR surface-to-surface (mm)886 K47473 hole-to-hole (mm)Recommended wiring system rail length (mm) Horizontal M8 mounting hole-to-hole (mm) = (Cabinet NOMINAL Width) %u2013 140 Vertical M8 mounting hole-to-hole (mm) = (Cabinet NOMINAL Height) %u2013 174 FITS CAB. DEPTH (mm) INSTALLATION OF WIRING SYSTEMSADAPTOR BRACKET KIT FOR WIRING SYSTEMADAPTOR RAIL KIT FOR WIRING SYSTEMBRACKET KIT FOR INNER PANEL OR WIRING SYSTEM
