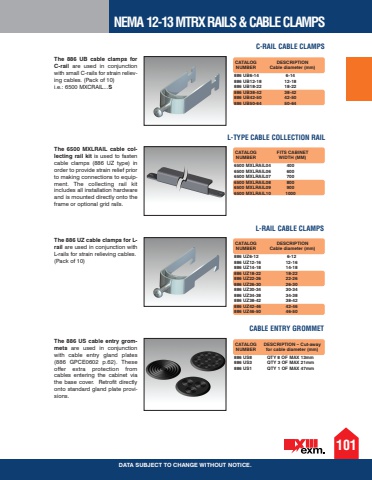

101NEMA 12-13 MTRX RAILS & CABLE CLAMPSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 886 UB cable clamps for C-rail are used in conjunctionwith small C-rails for strain relieving cables. (Pack of 10)i.e.: 6500 MXCRAIL...SCATALOG NUMBER886 UB6-14 6-14886 UB12-18 12-18886 UB18-22 18-22886 UB38-42 38-42886 UB42-50 42-50886 UB50-64 50-64DESCRIPTION Cable diameter (mm) The 6500 MXLRAIL cable collecting rail kit is used to fasten cable clamps (886 UZ type) in order to provide strain relief prior to making connections to equipment. The collecting rail kit includes all installation hardware and is mounted directly onto the frame or optional grid rails. CATALOG NUMBER6500 MXLRAIL04 400 6500 MXLRAIL06 600 6500 MXLRAIL07 700 6500 MXLRAIL08 800 6500 MXLRAIL09 900 6500 MXLRAIL10 1000FITS CABINET WIDTH (MM)The 886 US cable entry grommets are used in conjunction with cable entry gland plates (886 GPCE0602 p.62). These offer extra protection from cables entering the cabinet via the base cover. Retrofit directly onto standard gland plate provisions. CATALOG NUMBER886 US8 QTY 8 OF MAX 13mm 886 US3 QTY 3 OF MAX 21mm 886 US1 QTY 1 OF MAX 47mmDESCRIPTION %u2013 Cut-away for cable diameter (mm) The 886 UZ cable clamps for Lrail are used in conjunction with L-rails for strain relieving cables.(Pack of 10)CATALOG NUMBER886 UZ6-12 886 UZ12-16 886 UZ14-18 886 UZ18-22 886 UZ22-26 886 UZ26-30 886 UZ30-34 886 UZ34-38 886 UZ38-42 886 UZ42-46 886 UZ46-506-1212-1614-1818-2222-2626-3030-3434-3838-4242-4646-50DESCRIPTION Cable diameter (mm) C-RAIL CABLE CLAMPSL-TYPE CABLE COLLECTION RAILL-RAIL CABLE CLAMPSCABLE ENTRY GROMMET
