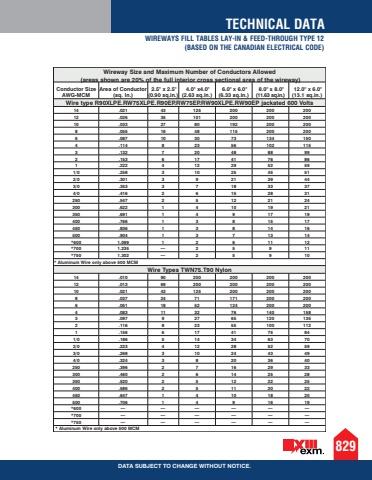

829TECHNICAL DATADATA SUBJECT TO CHANGE WITHOUT NOTICE.Wireway Size and Maximum Number of Conductors Allowed (areas shown are 20% of the full interior cross sectional area of the wireway)Conductor Size AWG-MCMArea of Conductor (sq. In.) 2.5\(0.90 sq.in.) 4.0\(2.63 sq.in.) 6.0\(6.33 sq.in.) 8.0\(11.63 sq.in.) 12.0\(13.1 sq.in.) Wire type R90XLPE.RW75XLPE.R90EP.RW75EP.RW90XLPE.RW90EP jackated 600 Volts14 .021 43 125 200 200 20012 .026 35 101 200 200 20010 .033 27 80 192 200 2008 .055 16 48 115 200 2006 .087 10 30 73 134 1504 .114 8 23 56 102 1153 .132 7 20 48 88 992 .153 6 17 41 76 861 .222 4 12 29 52 591/0 .258 3 10 25 45 512/0 .301 3 9 21 39 443/0 .353 3 7 18 33 374/0 .416 2 6 15 28 31250 .547 2 5 12 21 24300 .622 1 4 10 19 21350 .691 1 4 9 17 19400 .766 1 3 8 15 17450 .836 1 3 8 14 16500 .904 1 3 7 13 14*600 1.099 1 2 6 11 12*700 1.235 %u2014 2 5 9 11*750 1.302 %u2014 2 5 9 10* Aluminum Wire only above 500 MCM Wire Types TWN75.T90 Nylon14 .010 90 200 200 200 20012 .013 69 200 200 200 20010 .021 43 125 200 200 2008 .037 24 71 171 200 2006 .051 18 52 124 200 2004 .083 11 32 76 140 1583 .097 9 27 65 120 1352 .116 8 23 55 100 1121 .156 6 17 41 75 841/0 .186 5 14 34 63 702/0 .223 4 12 28 52 593/0 .268 3 10 24 43 494/0 .324 3 8 20 36 40250 .396 2 7 16 29 33300 .460 2 6 14 25 28350 .520 2 5 12 22 25400 .586 2 5 11 20 22450 .647 1 4 10 18 20500 .706 1 4 9 16 19*600 %u2014 %u2014%u2014 %u2014 %u2014 %u2014*700 %u2014 %u2014%u2014 %u2014 %u2014 %u2014*750 %u2014 %u2014%u2014 %u2014 %u2014 %u2014 * Aluminum Wire only above 500 MCM WIREWAYS FILL TABLES LAY-IN & FEED-THROUGH TYPE 12 (BASED ON THE CANADIAN ELECTRICAL CODE)
