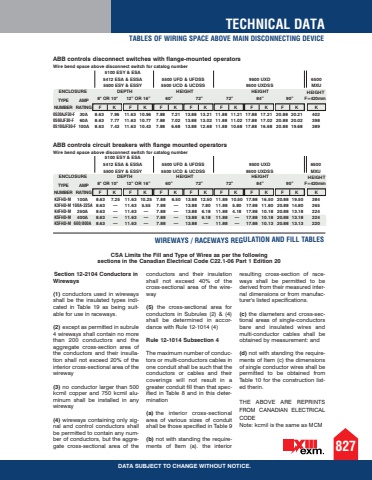

WIREWAYS / RACEWAYS REGULATION AND FILL TABLES827TECHNICAL DATADATA SUBJECT TO CHANGE WITHOUT NOTICE.ABB controls circuit breakers with flange mounted operatorsF K F K F K F K F K F K F KWire bend space above disconnect switch for catalog numberK2FHD-M 100A 8.63 7.25 11.63 10.25 7.88 6.50 13.88 12.50 11.88 10.50 17.88 16.50 20.88 19.50K3FHD-M 100A-225A 8.63 %u2014 11.63 5.55 7.88 %u2014 13.88 7.80 11.88 5.80 17.88 11.80 20.88 14.80K4FHD-M 250A 8.63 %u2014 11.63 %u2014 7.88 %u2014 13.88 6.18 11.88 4.18 17.88 10.18 20.88 13.18K5FHD-M 400A 8.63 %u2014 11.63 %u2014 7.88 %u2014 13.88 6.18 11.88 %u2014 17.88 10.18 20.88 13.18K5FHD-M 600/800A 8.63 %u2014 11.63 %u2014 7.88 %u2014 13.88 %u2014 11.88 %u2014 17.88 10.13 20.88 13.13384265224224220KABB controls disconnect switches with flange-mounted operatorsF K F K F K F K F K F K F KWire bend space above disconnect switch for catalog number0S30AJF30-F 30A 8.63 7.96 11.63 10.96 7.88 7.21 13.88 13.21 11.88 11.21 17.88 17.21 20.88 20.210S60JF30-F 60A 8.63 7.77 11.63 10.77 7.88 7.02 13.88 13.02 11.88 11.02 17.88 17.02 20.88 20.020S100JF30-F 100A 8.63 7.43 11.63 10.43 7.88 6.68 13.88 12.68 11.88 10.68 17.88 16.68 20.88 19.68402398389K6500 MXUHEIGHT F=420mm6500 MXUHEIGHT F=420mm5100 ESY & ESA 5412 ESA & ESSA 5500 ESY & ESSY5500 UFD & UFDSS 5500 UCD & UCDSS9500 UXD 9500 UXDSS5100 ESY & ESA 5412 ESA & ESSA 5500 ESY & ESSY5500 UFD & UFDSS 5500 UCD & UCDSS9500 UXD 9500 UXDSSCSA Limits the Fill and Type of Wires as per the following sections in the Canadian Electrical Code C22.1-06 Part 1 Edition 20 Section 12-2104 Conductors in Wireways(1) conductors used in wireways shall be the insulated types indicated in Table 19 as being suitable for use in raceways.(2) except as permitted in subrule 4 wireways shall contain no more than 200 conductors and the aggregate cross-section area of the conductors and their insullation shall not exceed 20% of the interior cross-sectional area of the wireway(3) no conductor larger than 500 kcmil copper and 750 kcmil aluminum shall be installed in any wireway (4) wireways containing only signal and control conductors shall be permitted to contain any number of conductors, but the aggregate cross-sectional area of the conductors and their insulation shall not exceed 40% of the cross-sectional area of the wireway (5) the cross-sectional area for conductors in Subrules (2) & (4) shall be determined in accordance with Rule 12-1014 (4) Rule 12-1014 Subsection 4The maximum number of conductors or multi-conductors cables in one conduit shall be such that the conductors or cables and their coverings will not result in a greater conduit fill than that specified in Table 8 and in this determination(a) the interior cross-sectional area of various sizes of conduit shall be those specified in Table 9(b) not with standing the requirements of Item (a). the interior resulting cross-section of raceways shall be permitted to be derived from their measured internal dimensions or from manufacturer's listed specifications. (c) the diameters and cross-sectional areas of single-conductors bare and insulated wires and multi-conductor cables shall be obtained by measurement: and(d) not with standing the requirements of Item (c) the dimensions of single conductor wires shall be permitted to be obtained from Table 10 for the construction listed therin.THE ABOVE ARE REPRINTS FROM CANADIAN ELECTRICAL CODENote: kcmil is the same as MCMENCLOSURE DEPTH HEIGHT HEIGHTTYPE NUMBERAMP RATING8\ 12%u201d OR 16%u201d 60%u201d 72%u201d 72%u201d 84%u201d 90%u201dENCLOSURE DEPTH HEIGHT HEIGHTTYPE NUMBERAMP RATING8\ 12%u201d OR 16%u201d 60%u201d 72%u201d 72%u201d 84%u201d 90%u201dTABLES OF WIRING SPACE ABOVE MAIN DISCONNECTING DEVICE
