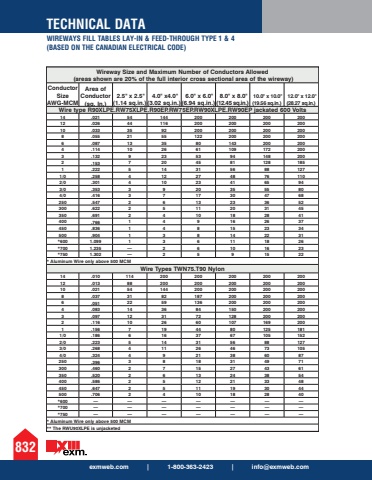

TECHNICAL DATAWIREWAYS FILL TABLES LAY-IN & FEED-THROUGH TYPE 1 & 4 (BASED ON THE CANADIAN ELECTRICAL CODE)832exmweb.com | 1-800-363-2423 | [email protected] Size and Maximum Number of Conductors Allowed (areas shown are 20% of the full interior cross sectional area of the wireway)Conductor Size AWG-MCMArea of Conductor (sq. In.) 2.5\(1.14 sq.in.) 4.0\(3.02 sq.in.) 6.0\(6.94 sq.in.) 8.0\(12.45 sq.in.) 10.0\(19.56 sq.in.) 12.0\(28.27 sq.in.) Wire type R90XLPE.RW75XLPE.R90EP.RW75EP.RW90XLPE.RW90EP jackated 600 Volts14 .021 54 144 200 200 200 20012 .026 44 116 200 200 200 20010 .033 35 92 200 200 200 2008 .055 21 55 122 200 200 2006 .087 13 35 80 143 200 2004 .114 10 26 61 109 172 2003 .132 9 23 53 94 148 2002 .153 7 20 45 81 128 1851 .222 5 14 31 56 88 1271/0 .258 4 12 27 48 76 1102/0 .301 4 10 23 41 65 943/0 .353 3 9 20 35 55 804/0 .416 3 7 17 30 47 68250 .547 2 6 13 23 36 52300 .622 2 5 11 20 31 45350 .691 2 4 10 18 28 41400 .766 1 4 9 16 26 37450 .836 1 4 8 15 23 34500 .904 1 3 8 14 22 31*600 1.099 1 3 6 11 18 26*700 1.235 %u2014 2 6 10 16 23*750 1.302 %u2014 2 5 9 15 22* Aluminum Wire only above 500 MCM Wire Types TWN75.T90 Nylon14 .010 114 200 200 200 200 20012 .013 88 200 200 200 200 20010 .021 54 144 200 200 200 2008 .037 31 82 187 200 200 2006 .051 22 59 136 200 200 2004 .083 14 36 84 150 200 2003 .097 12 31 72 128 200 2002 .116 10 26 60 107 169 2001 .156 7 19 44 80 125 1811/0 .186 6 16 37 67 105 1522/0 .223 5 14 31 56 88 1273/0 .268 4 11 26 46 73 1054/0 .324 4 9 21 38 60 87250 .396 3 8 18 31 49 71300 .460 2 7 15 27 43 61350 .520 2 6 13 24 38 54400 .586 2 5 12 21 33 48450 .647 2 5 11 19 30 44500 .706 2 4 10 18 28 40*600 %u2014 %u2014%u2014%u2014%u2014%u2014%u2014*700 %u2014 %u2014 %u2014 %u2014%u2014%u2014%u2014*750 %u2014 %u2014 %u2014 %u2014%u2014%u2014%u2014* Aluminum Wire only above 500 MCM ** The RWU90XLPE is unjacketed
