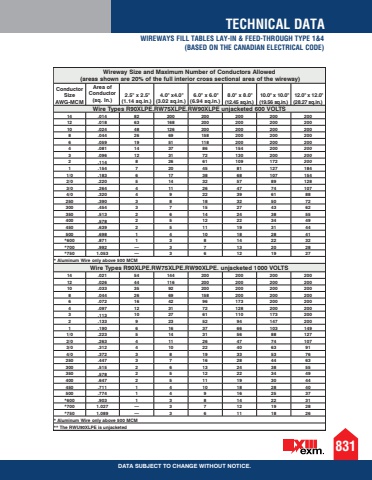

831TECHNICAL DATADATA SUBJECT TO CHANGE WITHOUT NOTICE.Wireway Size and Maximum Number of Conductors Allowed (areas shown are 20% of the full interior cross sectional area of the wireway)Conductor Size AWG-MCMArea of Conductor (sq. In.) 2.5\(1.14 sq.in.) 4.0\(3.02 sq.in.) 6.0\(6.94 sq.in.) 8.0\(12.45 sq.in.) 10.0\(19.56 sq.in.) 12.0\(28.27 sq.in.) Wire Types R90XLPE.RW75XLPE.RW90XLPE unjacketed 600 VOLTS14 .014 82 200 200 200 200 20012 .018 63 168 200 200 200 20010 .024 48 126 200 200 200 2008 .044 26 69 158 200 200 2006 .059 19 51 118 200 200 2004 .081 14 37 86 154 200 2003 .096 12 31 72 130 200 2002 .114 8 26 61 109 172 2001 .154 7 20 45 81 127 1841/0 .183 6 17 38 68 107 1542/0 .220 5 14 32 57 89 1283/0 .264 4 11 26 47 74 1074/0 .320 4 9 22 39 61 88250 .390 3 8 18 32 50 72300 .454 3 7 15 27 43 62350 .513 2 6 14 24 38 55400 .578 2 5 12 22 34 49450 .639 2 5 11 19 31 44500 .698 1 4 10 18 28 41*600 .871 1 3 8 14 22 32*700 .992 %u2014 3 7 13 20 28*750 1.053 %u2014 3 6 12 19 27* Aluminum Wire only above 500 MCM Wire Types R90XLPE.RW75XLPE.RW90XLPE. unjacketed 1000 VOLTS14 .021 54 144 200 200 200 20012 .026 44 116 200 200 200 20010 .033 35 92 200 200 200 2008 .044 26 69 158 200 200 2006 .072 16 42 96 173 200 2004 .097 12 31 72 128 200 2003 .113 10 27 61 110 173 2002 .133 9 23 52 94 147 2001 .190 6 16 37 66 103 1491/0 .223 5 14 31 56 88 1272/0 .263 4 11 26 47 74 1073/0 .312 4 10 22 40 63 914/0 .372 3 8 19 33 53 76250 .447 3 7 16 28 44 63300 .515 2 6 13 24 38 55350 .578 2 5 12 22 34 49400 .647 2 5 11 19 30 44450 .711 1 4 10 18 28 40500 .774 1 4 9 16 25 37*600 .903 1 3 8 14 22 31*700 1.027 %u2014 3 7 12 19 28*750 1.089 %u2014 3 6 11 18 26* Aluminum Wire only above 500 MCM ** The RWU90XLPE is unjacketedWIREWAYS FILL TABLES LAY-IN & FEED-THROUGH TYPE 1&4 (BASED ON THE CANADIAN ELECTRICAL CODE)
