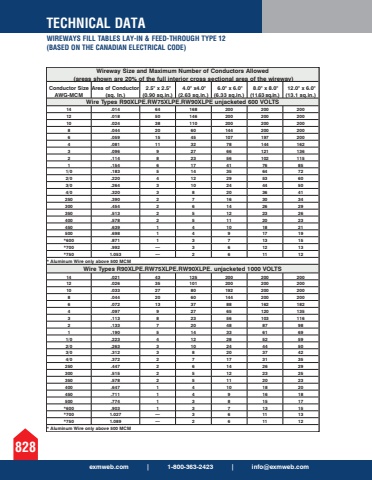

TECHNICAL DATAWIREWAYS FILL TABLES LAY-IN & FEED-THROUGH TYPE 12 (BASED ON THE CANADIAN ELECTRICAL CODE)828exmweb.com | 1-800-363-2423 | [email protected] Size and Maximum Number of Conductors Allowed (areas shown are 20% of the full interior cross sectional area of the wireway)Conductor Size AWG-MCMArea of Conductor (sq. In.) 2.5\(0.90 sq.in.) 4.0\(2.63 sq.in.) 6.0\(6.33 sq.in.) 8.0\(11.63 sq.in.) 12.0\(13.1 sq.in.) Wire Types R90XLPE.RW75XLPE.RW90XLPE unjacketed 600 VOLTS14 .014 64 168 200 200 20012 .018 50 146 200 200 20010 .024 38 110 200 200 2008 .044 20 60 144 200 2006 .059 15 45 107 197 2004 .081 11 32 78 144 1623 .096 9 27 66 121 1362 .114 8 23 56 102 1151 .154 6 17 41 76 851/0 .183 5 14 35 64 722/0 .220 4 12 29 53 603/0 .264 3 10 24 44 504/0 .320 3 8 20 36 41250 .390 2 7 16 30 34300 .454 2 6 14 26 29350 .513 2 5 12 23 26400 .578 2 5 11 20 23450 .639 1 4 10 18 21500 .698 1 4 9 17 19*600 .871 1 3 7 13 15*700 .992 %u2014 3 6 12 13*750 1.053 %u2014 2 6 11 12* Aluminum Wire only above 500 MCM Wire Types R90XLPE.RW75XLPE.RW90XLPE. unjacketed 1000 VOLTS14 .021 43 125 200 200 20012 .026 35 101 200 200 20010 .033 27 80 192 200 2008 .044 20 60 144 200 2006 .072 13 37 88 162 1824 .097 9 27 65 120 1353 .113 8 23 56 103 1162 .133 7 20 48 87 981 .190 5 14 33 61 691/0 .223 4 12 28 52 592/0 .263 3 10 24 44 503/0 .312 3 8 20 37 424/0 .372 2 7 17 31 35250 .447 2 6 14 26 29300 .515 2 5 12 23 25350 .578 2 5 11 20 23400 .647 1 4 10 18 20450 .711 1 4 9 16 18500 .774 1 3 8 15 17*600 .903 1 3 7 13 15*700 1.027 %u2014 3 6 11 13*750 1.089 %u2014 2 6 11 12* Aluminum Wire only above 500 MCM
