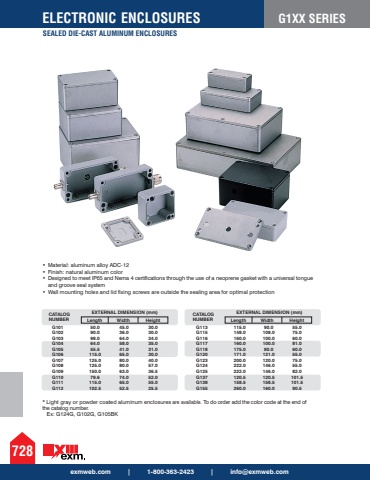

exmweb.com | 1-800-363-2423 | [email protected] ENCLOSURESSEALED DIE-CAST ALUMINUM ENCLOSURES728G1XX SERIES%u2022 Material: aluminum alloy ADC-12 %u2022 Finish: natural aluminum color %u2022 Designed to meet IP65 and Nema 4 certifications through the use of a neoprene gasket with a universal tongue and groove seal system %u2022 Wall mounting holes and lid fixing screws are outside the sealing area for optimal protection* Light gray or powder coated aluminum enclosures are available. To do order add the color code at the end of the catalog number. Ex: G124G, G102G, G105BKCATALOG NUMBEREXTERNAL DIMENSION (mm)G101 G102 G103 G104 G105 G106 G107G108 G109 G110 G111 G11250.0 90.0 98.0 64.0 55.5 115.0 125.0 125.0 150.0 79.6 115.0 102.545.0 36.0 64.0 58.0 41.0 65.0 80.0 80.0 63.0 74.0 65.0 52.530.0 30.0 34.0 35.0 31.0 30.0 40.0 57.0 36.5 52.0 55.0 25.5CATALOG NUMBEREXTERNAL DIMENSION (mm)Length Width HeightG113 G115 G116 G117 G118 G120 G123 G124 G125 G137 G138 G155115.0 148.0 160.0 160.0 175.0 171.0 200.0 222.0 222.0 120.5 158.5 260.090.0 108.0 100.0 100.0 80.0 121.0 120.0 146.0 146.0 120.5 158.5 160.055.0 75.0 60.0 81.0 60.0 55.0 75.0 55.0 82.0 101.5 101.5 90.5Length Width Height
