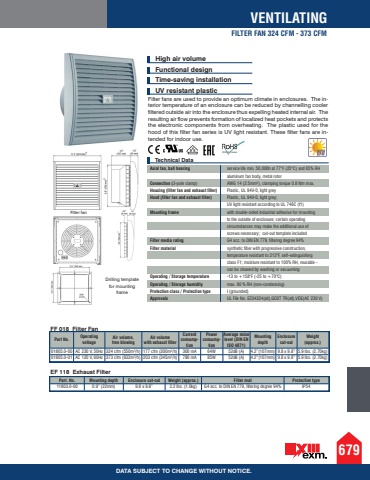

679VENTILATINGFILTER FAN 324 CFM - 373 CFMDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataHigh air volume Functional design Time-saving installation UV resistant plasticFilter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized heat pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is UV light resistant. These filter fans are intended for indoor use.Axial fan, ball bearing service life min. 50,000h at 77%u00b0F (25%u00b0C) and 65% RH aluminum fan body, metal rotor Connection (3-pole clamp) AWG 14 (2.5mm%u00b2), clamping torque 0.8 Nm max.Housing (filter fan and exhaust filter) Plastic, UL 94V-0, light grey Hood (filter fan and exhaust filter) Plastic, UL 94V-0, light grey; UV light resistant according to UL 746C (f1)Mounting frame with double-sided industrial adhesive for mounting to the outside of enclosure; certain operating circumstances may make the additional use of screws necessary; cut-out template includedFilter media rating G4 acc. to DIN EN 779, filtering degree 94% Filter material synthetic fiber with progressive construction, temperature resistant to 212%u00b0F, self-extinguishing class F1; moisture resistant to 100% RH, reusable - can be cleaned by washing or vacuuming Operating / Storage temperature -13 to +158%u00b0F (-25 to +70%u00b0C)Operating / Storage humidity max. 90 % RH (non-condensing) Protection class / Protection type I (grounded) Approvals UL File No. E234324(all),GOST TR(all),VDE(AC 230 V) Filter fanPart. No. Mounting depth Enclosure cut-out Weight (approx.) Filter mat Protection type11803.0-00 0.9%u201d (22mm) 9.8 x 9.8%u201d 2.2 lbs. (1.0kg) G4 acc. to DIN EN 779, filtering degree 94% IP54Part No. Operating voltageAir volume, free blowingAir volume with exhaust filterCurrent consumptionPower consumptionAverage noise level (DIN EN ISO 4871)Mounting depthEnclosure cut-outWeight (approx.)01805.0-00 AC 230 V, 50Hz 324 cfm (550m%u00b3/h) 177 cfm (300m%u00b3/h) 300 mA 64W 52dB (A) 4.2%u201d(107mm) 9.8 x 9.8%u201d 5.9 lbs. (2.70kg)01805.0-01 AC 120 V, 60Hz 373 cfm (632m%u00b3/h) 203 cfm (345m%u00b3/h) 780 mA 85W 52dB (A) 4.2%u201d(107mm) 9.8 x 9.8%u201d 5.9 lbs. (2.70kg)FF 018 Filter FanEF 118 Exhaust FilterDrilling template for mounting frame
