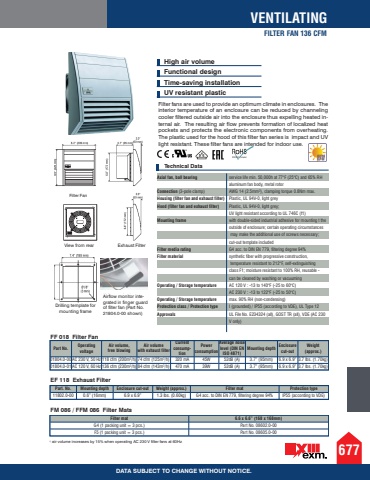

677VENTILATINGFILTER FAN 136 CFMDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataHigh air volume Functional design Time-saving installation UV resistant plasticFilter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channeling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized heat pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is impact and UV light resistant. These filter fans are intended for indoor use.Axial fan, ball bearing service life min. 50,000h at 77%u00b0F (25%u00b0C) and 65% RH aluminum fan body, metal rotor Connection (3-pole clamp) AWG 14 (2.5mm%u00b2), clamping torque 0.8Nm max.Housing (filter fan and exhaust filter) Plastic, UL 94V-0, light grey Hood (filter fan and exhaust filter) Plastic, UL 94V-0, light grey; UV light resistant according to UL 746C (f1)Mounting frame with double-sided industrial adhesive for mounting t the outside of enclosure; certain operating circumstances may make the additional use of screws necessary; cut-out template includedFilter media rating G4 acc. to DIN EN 779, filtering degree 94% Filter material synthetic fiber with progressive construction, temperature resistant to 212%u00b0F, self-extinguishing class F1; moisture resistant to 100% RH, reusable - can be cleaned by washing or vacuuming Operating / Storage temperature AC 120 V : -13 to 140%u00b0F (-25 to 60%u00b0C) AC 230 V : -13 to 122%u00b0F (-25 to 50%u00b0C) Operating / Storage temperature max. 90% RH (non-condensing) Protection class / Protection type I (grounded) / IP55 (according to VDE), UL Type 12 Approvals UL File No. E234324 (all), GOST TR (all), VDE (AC 230 V only)Filter mat 6.6 x 6.6%u201d (168 x 168mm)G4 (1 packing unit = 3 pcs.) Part No. 08602.0-00F5 (1 packing unit = 3 pcs.) Part No. 08605.0-00FM 086 / FFM 086 Filter MatsPart. No. Mounting depth Enclosure cut-out Weight (approx.) Filter mat Protection type11802.0-00 0.6%u201d (16mm) 6.9 x 6.9%u201d 1.3 lbs. (0.60kg) G4 acc. to DIN EN 779, filtering degree 94% IP55 (according to VDE)Part No. Operating voltageAir volume, free blowingAir volume with exhaust filterCurrent consumptionPower consumptionAverage noise level (DIN EN ISO 4871)Mounting depth Enclosure cut-outWeight (approx.)01804.0-00 AC 230 V, 50 Hz 118 cfm (200m%u00b3/h) 74 cfm (125m%u00b3/h) 320 mA 45W 52dB (A) 3.7%u201d (95mm) 6.9 x 6.9%u201d 3.7 lbs. (1.70kg)01804.0-01 AC 120 V, 60 Hz 136 cfm (230m%u00b3/h) 84 cfm (143m%u00b3/h) 470 mA 39W 52dB (A) 3.7%u201d (95mm) 6.9 x 6.9%u201d 3.7 lbs. (1.70kg)Filter FanView from rearDrilling template for mounting frameAirflow monitor integrated in finger guard of filter fan (Part No. 21804.0-00 shown)FF 018 Filter FanEF 118 Exhaust FilterExhaust Filter1) air volume increases by 15% when operating AC 230 V filter fans at 60Hz
