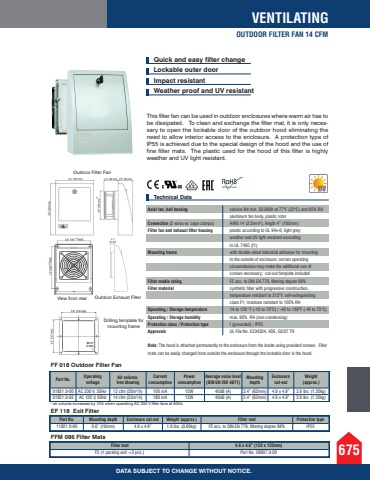

675DATA SUBJECT TO CHANGE WITHOUT NOTICE.VENTILATINGOUTDOOR FILTER FAN 14 CFMTechnical DataQuick and easy filter change Lockable outer door Impact resistant Weather proof and UV resistantThis filter fan can be used in outdoor enclosures where warm air has to be dissipated. To clean and exchange the filter mat, it is only necessary to open the lockable door of the outdoor hood eliminating the need to allow interior access to the enclosure. A protection type of IP55 is achieved due to the special design of the hood and the use of fine filter mats. The plastic used for the hood of this filter is highly weather and UV light resistant.Axial fan, ball bearing service life min. 50,000h at 77%u00b0F (25%u00b0C) and 65% RH aluminum fan body, plastic rotor Connection (2 wires w/ cage clamps) AWG 14 (2.5mm%u00b2), length 4%u201d (100mm)Filter fan and exhaust filter housing plastic according to UL 94v-0, light grey; weather and UV light resistant according to UL 746C (f1)Mounting frame with double-sided industrial adhesive for mounting to the outside of enclosure; certain operating circumstances may make the additional use of screws necessary; cut-out template includedFilter media rating F5 acc. to DIN EN 779, filtering degree 98% Filter material synthetic fiber with progressive construction, temperature resistant to 212%u00b0F, self-extinguishing class F1; moisture resistant to 100% RH Operating / Storage temperature 14 to 158 %u00b0F (-10 to 70%u00b0C) / -40 to 158%u00b0F (-40 to 70%u00b0C)Operating / Storage humidity max. 90% RH (non-condensing) Protection class / Protection type I (grounded) / IP55 Approvals UL File No. E234324, VDE, GOST TR Note: The hood is attached permanently to the enclosure from the inside using provided screws. Filter mats can be easily changed from outside the enclosure through the lockable door in the hood.Filter mat 4.6 x 4.6%u201d (122 x 122mm)F5 (1 packing unit =3 pcs.) Part No. 08607.0-00FFM 086 Filter MatsPart No. Mounting depth Enclosure cut-out Weight (approx.) Filter mat Protection type11821.0-00 0.6%u201d (16mm) 4.9 x 4.9%u201d 1.6 lbs. (0.60kg) F5 acc. to DIN EN 779, filtering degree 98% IP55EF 118 Exit FilterPart No. Operating voltageAir volume, free blowingCurrent consumptionPower consumptionAverage noise level (DIN EN ISO 4871)Mounting depthEnclosure cut-outWeight (approx.)01821.0-00 AC 230 V, 50Hz1) 12 cfm (20m%u00b3/h) 100 mA 15W 40dB (A) 2.4%u201d (62mm) 4.9 x 4.9%u201d 2.6 lbs. (1.20kg)01821.0-02 AC 120 V, 60Hz 14 cfm (23m%u00b3/h) 180 mA 15W 40dB (A) 2.4%u201d (62mm) 4.9 x 4.9%u201d 2.6 lbs. (1.20kg)FF 018 Outdoor Filter FanOutdoor Filter FanDrilling template for mounting frame1) air volume increases by 15% when operating AC 230 V filter fans at 60HzView from rear Outdoor Exhaust Filter
