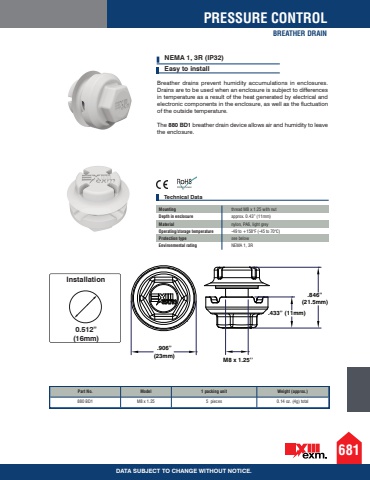

681PRESSURE CONTROLBREATHER DRAINDATA SUBJECT TO CHANGE WITHOUT NOTICE.Technical DataNEMA 1, 3R (IP32) Easy to installBreather drains prevent humidity accumulations in enclosures. Drains are to be used when an enclosure is subject to differences in temperature as a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. The 880 BD1 breather drain device allows air and humidity to leave the enclosure.Part No. Model 1 packing unit Weight (approx.)880 BD1 M8 x 1.25 5 pieces 0.14 oz. (4g) total.433%u2019%u2019 (11mm).846%u2019%u2019(21.5mm)M8 x 1.25%u2019%u2019.906%u2019%u2019(23mm)Mounting thread M8 x 1.25 with nut Depth in enclosure approx. 0.43%u201d (11mm) Material nylon, PA6, light grey Operating/storage temperature -49 to +158%u00b0F (-45 to 70%u00b0C) Protection type see below Environmental rating NEMA 1, 3RInstallation0.512%u201d (16mm)
