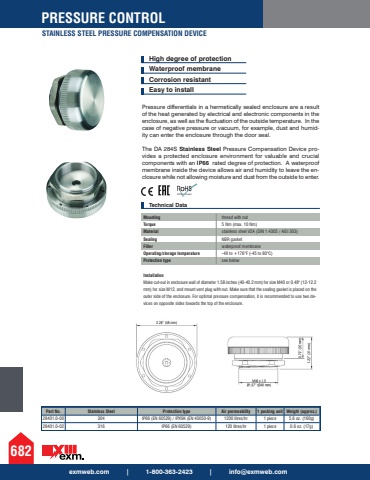

exmweb.com | 1-800-363-2423 | [email protected] CONTROLSTAINLESS STEEL PRESSURE COMPENSATION DEVICE682Technical DataHigh degree of protection Waterproof membrane Corrosion resistant Easy to installPressure differentials in a hermetically sealed enclosure are a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. In the case of negative pressure or vacuum, for example, dust and humidity can enter the enclosure through the door seal. The DA 284S Stainless Steel Pressure Compensation Device provides a protected enclosure environment for valuable and crucial components with an IP66 rated degree of protection. A waterproof membrane inside the device allows air and humidity to leave the enclosure while not allowing moisture and dust from the outside to enter.Part No. Stainless Steel Protection type Air permeability 1 packing unit Weight (approx.)28401.0-00 304 IP66 (EN 60529) / IPX9K (EN 40050-9) 1200 litres/hr 1 piece 5.6 oz. (160g)28401.0-02 316 IP66 (EN 60529) 120 litres/hr 1 piece 0.6 oz. (17g)Mounting thread with nut Torque 5 Nm (max. 10 Nm) Material stainless steel V2A (DIN 1.4305 / AISI 303) Sealing NBR gasket Filter waterproof membrane Operating/storage temperature -49 to +176%u00b0F (-45 to 80%u00b0C) Protection type see below Installation Make cut-out in enclosure wall of diameter 1.58 inches (40-40.2 mm) for size M40 or 0.48\mm) for size M12, and mount vent plug with nut. Make sure that the sealing gasket is placed on the outer side of the enclosure. For optimal pressure compensation, it is recommended to use two devices on opposite sides towards the top of the enclosure.
