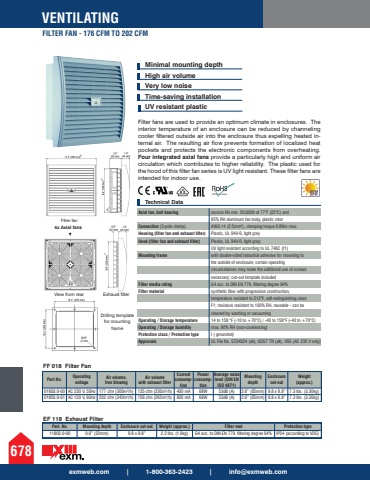

exmweb.com | 1-800-363-2423 | [email protected] FAN - 176 CFM TO 202 CFM678Technical DataMinimal mounting depth High air volume Very low noise Time-saving installation UV resistant plasticFilter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channeling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized heat pockets and protects the electronic components from overheating. Four integrated axial fans provide a particularly high and uniform air circulation which contributes to higher reliability. The plastic used for the hood of this filter fan series is UV light resistant. These filter fans are intended for indoor use.Axial fan, ball bearing service life min. 50,000h at 77%u00b0F (25%u00b0C) and 65% RH aluminum fan body, plastic rotor Connection (3-pole clamp) AWG 14 (2.5mm%u00b2), clamping torque 0.8Nm max.Housing (filter fan and exhaust filter) Plastic, UL 94V-0, light grey Hood (filter fan and exhaust filter) Plastic, UL 94V-0, light grey; UV light resistant according to UL 746C (f1)Mounting frame with double-sided industrial adhesive for mounting to the outside of enclosure; certain operating circumstances may make the additional use of screws necessary; cut-out template includedFilter media rating G4 acc. to DIN EN 779, filtering degree 94% Filter material synthetic fiber with progressive construction, temperature resistant to 212%u00b0F, self-extinguishing class F1; moisture resistant to 100% RH, reusable - can be cleaned by washing or vacuuming Operating / Storage temperature 14 to 158 %u00b0F (-10 to +70%u00b0C) / -40 to 158%u00b0F (-40 to +70%u00b0C)Operating / Storage humidity max. 90% RH (non-condensing) Protection class / Protection type I ( grounded) Approvals UL File No. E234324 (all), GOST TR (all), VDE (AC 230 V only) EF 118 Exhaust FilterFF 018 Filter Fan4x Axial fansView from rearFilter fanDrilling template for mounting framePart. No. Mounting depth Enclosure cut-out Weight (approx.) Filter mat Protection type11803.0-00 0.9%u201d (22mm) 9.8 x 9.8%u201d 2.2 lbs. (1.0kg) G4 acc. to DIN EN 779, filtering degree 94% IP54 (according to VDE)Part No. Operating voltageAir volume, free blowingAir volume with exhaust filterCurrent consumptionPower consumptionAverage noise level (DIN EN ISO 4871)Mounting depthEnclosure cut-outWeight (approx.)01803.0-00 AC 230 V, 50Hz 177 cfm (300m%u00b3/h) 135 cfm (230m%u00b3/h) 400 mA 68W 53dB (A) 2.6%u201d (65mm) 9.8 x 9.8%u201d 7.3 lbs. (3.30kg)01803.0-01 AC 120 V, 60Hz 202 cfm (345m%u00b3/h) 156 cfm (265m%u00b3/h) 800 mA 68W 53dB (A) 2.6%u201d (65mm) 9.8 x 9.8%u201d 7.3 lbs. (3.30kg)Exhaust filter
