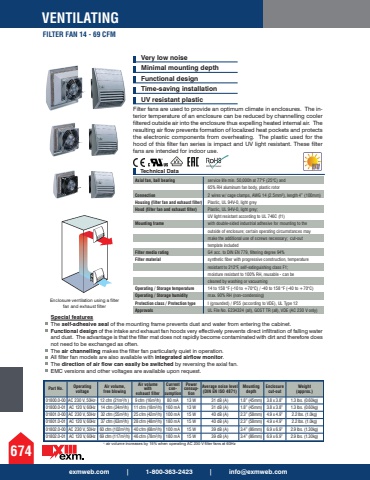

exmweb.com | 1-800-363-2423 | [email protected] FAN 14 - 69 CFMTechnical DataVery low noise Minimal mounting depth Functional design Time-saving installation UV resistant plasticAxial fan, ball bearing service life min. 50,000h at 77%u00b0F (25%u00b0C) and 65% RH aluminum fan body, plastic rotor Connection 2 wires w/ cage clamps, AWG 14 (2.5mm%u00b2), length 4%u201d (100mm)Housing (filter fan and exhaust filter) Plastic, UL 94V-0, light grey Hood (filter fan and exhaust filter) Plastic, UL 94V-0, light grey; UV light resistant according to UL 746C (f1)Mounting frame with double-sided industrial adhesive for mounting to the outside of enclosure; certain operating circumstances may make the additional use of screws necessary; cut-out template includedFilter media rating G4 acc. to DIN EN 779, filtering degree 94% Filter material synthetic fiber with progressive construction, temperature resistant to 212%u00b0F, self-extinguishing class F1; moisture resistant to 100% RH, reusable - can be cleaned by washing or vacuuming Operating / Storage temperature 14 to 158 %u00b0F (-10 to +70%u00b0C) / -40 to 158 %u00b0F (-40 to +70%u00b0C)Operating / Storage humidity max. 90% RH (non-condensing) Protection class / Protection type I (grounded) / IP55 (according to VDE), UL Type 12Approvals UL File No. E234324 (all), GOST TR (all), VDE (AC 230 V only)Part No. Operating voltageAir volume, free blowingAir volume with exhaust filterCurrent consumptionPower consuptionAverage noise level (DIN EN ISO 4871)Mounting depthEnclosure cut-outWeight (approx.)01800.0-00 AC 230 V, 50Hz1) 12 cfm (21m%u00b3/h ) 9 cfm (16m%u00b3/h) 80 mA 13 W 31 dB (A) 1.8%u201d (45mm) 3.8 x 3.8%u201d 1.3 lbs. (0.60kg)01800.0-01 AC 120 V, 60Hz 14 cfm (24m%u00b3/h) 11 cfm (18m%u00b3/h) 160 mA 13 W 31 dB (A) 1.8%u201d (45mm) 3.8 x 3.8%u201d 1.3 lbs. (0.60kg)01801.0-00 AC 230 V, 50Hz1 32 cfm (55m%u00b3/h) 25 cfm (42m%u00b3/h) 100 mA 15 W 40 dB (A) 2.3%u201d (58mm) 4.9 x 4.9%u201d 2.2 lbs. (1.0kg)01801.0-01 AC 120 V, 60Hz 37 cfm (63m%u00b3/h) 28 cfm (48m%u00b3/h) 180 mA 15 W 40 dB (A) 2.3%u201d (58mm) 4.9 x 4.9%u201d 2.2 lbs. (1.0kg)01802.0-00 AC 230 V, 50Hz1 60 cfm (102m%u00b3/h) 40 cfm (68m%u00b3/h) 100 mA 15 W 39 dB (A) 3.4%u201d (86mm) 6.9 x 6.9%u201d 2.9 lbs. (1.30kg)01802.0-01 AC 120 V, 60Hz 69 cfm (117m%u00b3/h) 46 cfm (78m%u00b3/h) 180 mA 15 W 39 dB (A) 3.4%u201d (86mm) 6.9 x 6.9%u201d 2.9 lbs. (1.30kg)Special featuresThe self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet. Functional design of the intake and exhaust fan hoods very effectively prevents direct infiltration of falling water and dust. The advantage is that the filter mat does not rapidly become contaminated with dirt and therefore does not need to be exchanged as often. The air channelling makes the filter fan particularly quiet in operation. All filter fan models are also available with integrated airflow monitor. The direction of air flow can easily be switched by reversing the axial fan. EMC versions and other voltages are available upon request.Enclosure ventilation using a filter fan and exhaust filter1) air volume increases by 15% when operating AC 230 V filter fans at 60HzFilter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting air flow prevents formation of localized heat pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is impact and UV light resistant. These filter fans are intended for indoor use.
