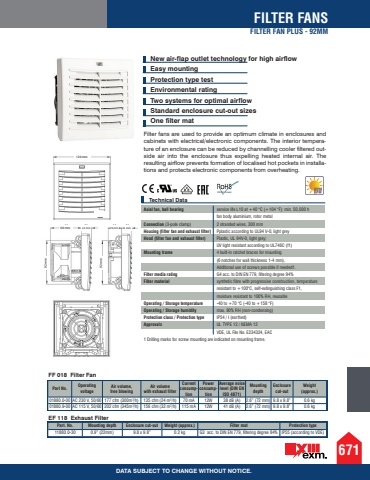

671DATA SUBJECT TO CHANGE WITHOUT NOTICE.FILTER FANSFILTER FAN PLUS - 92MMNew air-flap outlet technology for high airflow Easy mounting Protection type test Environmental rating Two systems for optimal airflow Standard enclosure cut-out sizes One filter matFilter fans are used to provide an optimum climate in enclosures and cabinets with electrical/electronic components. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and protects electronic components from overheating. EF 118 Exhaust FilterFF 018 Filter FanPart. No. Mounting depth Enclosure cut-out Weight (approx.) Filter mat Protection type11880.0-30 0.9%u201d (22mm) 9.8 x 9.8%u201d 0.2 kg G3 acc. to DIN EN 779, filtering degree 84% IP55 (according to VDE)Part No. Operating voltageAir volume, free blowingAir volume with exhaust filterCurrent consumptionPower consumptionAverage noise level (DIN EN ISO 4871)Mounting depthEnclosure cut-outWeight (approx.)01880.0-00 AC 230 V, 50/60 177 cfm (300m%u00b3/h) 135 cfm (24 m%u00b3/h) 70 mA 12W 38 dB (A) 2.6%u201d (72 mm) 9.8 x 9.8%u201d 0.6 kg01880.9-00 AC 115 V, 50/60 202 cfm (345m%u00b3/h) 156 cfm (32 m%u00b3/h) 115 mA 12W 41 dB (A) 2.6%u201d (72 mm) 9.8 x 9.8%u201d 0.6 kg120 mm66 mm 22 mm 29 mm 22 mm92 mm 92 mmTechnical DataAxial fan, ball bearing service life L10 at +40 %u00b0C (+104 %u00b0F): min. 50,000 h fan body aluminium, rotor metal Connection (3-pole clamp) 2 stranded wires, 300 mm Housing (filter fan and exhaust filter) Pplastic according to UL94 V-0, light grey Hood (filter fan and exhaust filter) Plastic, UL 94V-0, light grey; UV light resistant according to UL746C (f1)Mounting frame 4 built-in ratchet braces for mounting (6 notches for wall thickness 1-4 mm). Additional use of screws possible if needed1.Filter media rating G4 acc. to DIN EN 779, filtering degree 94% Filter material synthetic fibre with progressive construction, temperature resistant to +100%u00b0C, self-extinguishing class F1, moisture resistant to 100% RH, reusable Operating / Storage temperature -40 to +70 %u00b0C (-40 to +158 %u00b0F)Operating / Storage humidity max. 90% RH (non-condensing) Protection class / Protection type IP54 / I (earthed) Approvals UL TYPE 12 / NEMA 12 VDE, UL File No. E234324, EAC 1 Drilling marks for screw mounting are indicated on mounting frame.
