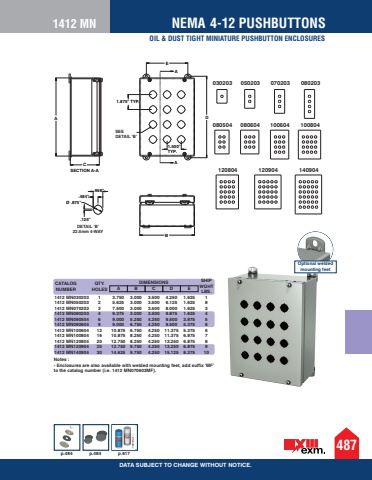

p.484 p.484 p.617487NEMA 4-12 PUSHBUTTONSOIL & DUST TIGHT MINIATURE PUSHBUTTON ENCLOSURES1412 MNDATA SUBJECT TO CHANGE WITHOUT NOTICE.1.875%u201d TYP.1.500%u201dTYP..484%u201d.968%u201d.125%u201d%u00d8 .875%u201dAADEBCASECTION A-ASEEDETAIL %u2018B%u2019DETAIL %u2018B%u201922.5mm 4-WAYCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 MN030203 1 3.750 3.000 3.500 4.250 1.625 1 1412 MN050203 2 5.625 3.000 3.500 6.125 1.625 8 1412 MN070203 3 7.500 3.000 3.500 8.000 1.625 3 1412 MN080203 4 9.375 3.000 3.500 9.875 1.625 4 1412 MN080504 6 9.000 5.250 4.250 9.500 3.875 5 1412 MN080604 9 9.000 6.750 4.250 9.500 5.375 6 1412 MN100604 12 10.875 6.750 4.250 11.375 5.375 6 1412 MN100804 16 10.875 8.250 4.250 11.375 6.875 7 1412 MN120804 20 12.750 8.250 4.250 13.250 6.875 8 1412 MN120904 25 12.750 9.750 4.250 13.250 6.875 9 1412 MN140904 30 14.625 9.750 4.250 15.125 8.375 10QTY. HOLES030203 050203 070203 080203080504 080604 100604 100804120804 120904 140904Notes : - Enclosures are also available with welded mounting feet, add suffix %u2018MF%u2019 to the catalog number (i.e. 1412 MN070603MF).Optional welded mounting feet
