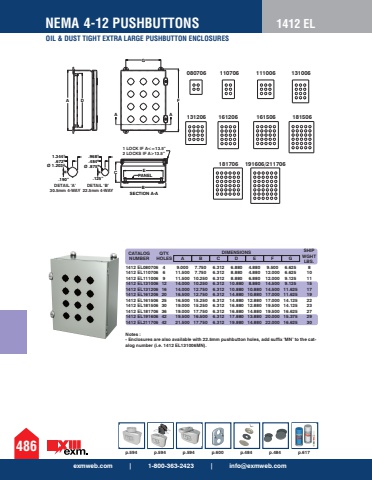

p.594 p.594 p.594 p.600 p.484 p.484 p.617exmweb.com | 1-800-363-2423 | [email protected] 4-12 PUSHBUTTONSOIL & DUST TIGHT EXTRA LARGE PUSHBUTTON ENCLOSURES4861412 ELSECTION A-AA ACABPANELDEGF1.344%u201d.190%u201d%u00d8 1.203%u201d.672%u201d%u00d8 .875%u201d.125%u201d.968%u201d.484%u201dDETAIL %u2018A%u201930.5mm 4-WAYDETAIL %u2018B%u201922.5mm 4-WAY1 LOCK IF A<=13.5%u201d2 LOCKS IF A>13.5%u201d080706 110706 111006 131006CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.1412 EL080706 4 9.000 7.750 6.312 6.880 4.880 9.500 6.625 8 1412 EL110706 6 11.500 7.750 6.312 8.880 4.880 12.000 6.625 10 1412 EL111006 9 11.500 10.250 6.312 8.880 6.880 12.000 9.125 11 1412 EL131006 12 14.000 10.250 6.312 10.880 8.880 14.500 9.125 15 1412 EL131206 16 14.000 12.750 6.312 10.880 10.880 14.500 11.625 17 1412 EL161206 20 16.500 12.750 6.312 14.880 10.880 17.000 11.625 19 1412 EL161506 25 16.500 15.250 6.312 14.880 12.880 17.000 14.125 22 1412 EL181506 30 19.000 15.250 6.312 16.880 12.880 19.500 14.125 23 1412 EL181706 36 19.000 17.750 6.312 16.880 14.880 19.500 16.625 27 1412 EL191606 42 19.500 16.500 6.312 17.880 13.880 20.000 15.375 29 1412 EL211706 42 21.500 17.750 6.312 19.880 14.880 22.000 16.625 30QTY. HOLESNotes : - Enclosures are also available with 22.5mm pushbutton holes, add suffix %u2018MN%u2019 to the catalog number (i.e. 1412 EL131006MN).131206 161206 161506 181506181706 191606/211706
