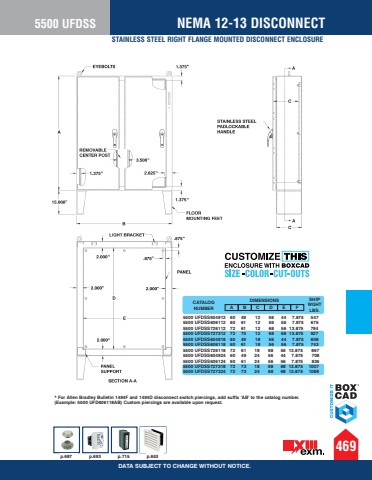

p.687 p.693 p.715 p.653STAINLESS STEEL RIGHT FLANGE MOUNTED DISCONNECT ENCLOSURE5500 UFDSS NEMA 12-13 DISCONNECT* For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 5500 UFD606118AB) Custom piercings are available upon request.469DATA SUBJECT TO CHANGE WITHOUT NOTICE.A B C D E FDIMENSIONS5500 UFDSS604912 60 49 12 56 44 7.875 547 5500 UFDSS606112 60 61 12 56 56 7.875 675 5500 UFDSS726112 72 61 12 68 56 13.875 794 5500 UFDSS727312 72 73 12 68 68 13.875 927 5500 UFDSS604918 60 49 18 56 44 7.875 608 5500 UFDSS606118 60 61 18 56 56 7.875 743 5500 UFDSS726118 72 61 18 68 56 13.875 867 5500 UFDSS604924 60 49 24 56 44 7.875 708 5500 UFDSS606124 60 61 24 56 56 7.875 836 5500 UFDSS727318 72 73 18 68 68 13.875 1007 5500 UFDSS727324 72 73 24 68 68 13.875 1088CATALOG NUMBERSHIP WGHT LBS.
