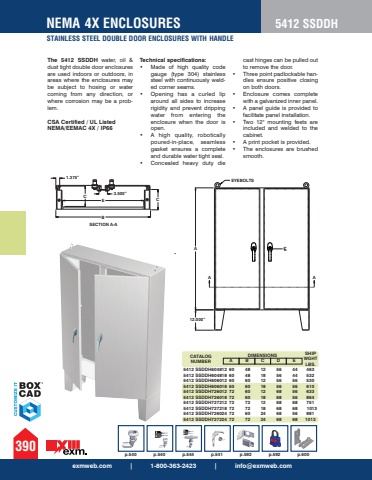

p.540 p.540 p.544 p.541 p.592 p.592 p.600A B C D EDIMENSIONSThe 5412 SSDDH water, oil & dust tight double door enclosures are used indoors or outdoors, in areas where the enclosures may be subject to hosing or water coming from any direction, or where corrosion may be a problem. CSA Certified / UL Listed NEMA/EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality codegauge (type 304) stainlesssteel with continuously welded corner seams.%u2022 Opening has a curled liparound all sides to increaserigidity and prevent drippingwater from entering theenclosure when the door isopen.%u2022 A high quality, roboticallypoured-in-place, seamlessgasket ensures a completeand durable water tight seal.%u2022 Concealed heavy duty diecast hinges can be pulled out to remove the door. %u2022 Three point padlockable handles ensure positive closingon both doors.%u2022 Enclosure comes completewith a galvanized inner panel.%u2022 A panel guide is provided tofacilitate panel installation.%u2022 Two 12\included and welded to thecabinet.%u2022 A print pocket is provided.%u2022 The enclosures are brushedsmooth.CATALOG NUMBERSHIP WGHT LBS.CLC3.5001.375A AA12.000BECSECTION A-AEYEBOLTS %u201d%u201d%u201d5412 SSDDH604812 60 48 12 56 44 463 5412 SSDDH604818 60 48 18 56 44 532 5412 SSDDH606012 60 60 12 56 56 530 5412 SSDDH606018 60 60 18 56 56 610 5412 SSDDH726012 72 60 12 68 56 633 5412 SSDDH726018 72 60 18 68 56 864 5412 SSDDH727212 72 72 12 68 68 751 5412 SSDDH727218 72 72 18 68 68 1013 5412 SSDDH726024 72 60 24 68 56 881 5412 SSDDH727224 72 72 24 68 68 1013NEMA 4X ENCLOSURESSTAINLESS STEEL DOUBLE DOOR ENCLOSURES WITH HANDLE5412 SSDDHexmweb.com | 1-800-363-2423 | [email protected]
