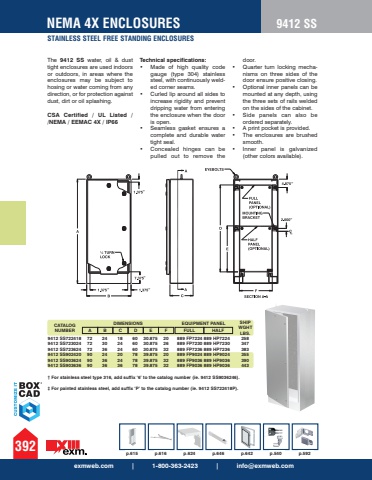

%u201d%u201d%u201d %u201d%u201d%u201dexmweb.com | 1-800-363-2423 | [email protected] 9412 SS water, oil & dust tight enclosures are used indoors or outdoors, in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / /NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality codegauge (type 304) stainlesssteel, with continuously welded corner seams.%u2022 Curled lip around all sides toincrease rigidity and preventdripping water from enteringthe enclosure when the dooris open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Concealed hinges can bepulled out to remove thedoor. %u2022 Quarter turn locking mechanisms on three sides of thedoor ensure positive closing.%u2022 Optional inner panels can bemounted at any depth, usingthe three sets of rails weldedon the sides of the cabinet.%u2022 Side panels can also beordered separately.%u2022 A print pocket is provided.%u2022 The enclosures are brushedsmooth.%u2022 Inner panel is galvanized(other colors available).CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9412 SS722418 72 24 18 60 30.875 20 889 FP7224 889 HP7224 258 9412 SS723024 72 30 24 60 30.875 26 889 FP7230 889 HP7230 347 9412 SS723624 72 36 24 60 30.875 32 889 FP7236 889 HP7236 383 9412 SS902420 90 24 20 78 39.875 20 889 FP9024 889 HP9024 355 9412 SS903624 90 36 24 78 39.875 32 889 FP9036 889 HP9036 390 9412 SS903636 90 36 36 78 39.875 32 889 FP9036 889 HP9036 443p.615 p.616 p.624 p.646 p.642 p.540 p.592%u2020 For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (ie. 9412 SS9036246). %u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 9412 SS722418P).NEMA 4X ENCLOSURESSTAINLESS STEEL FREE STANDING ENCLOSURES9412 SS392
