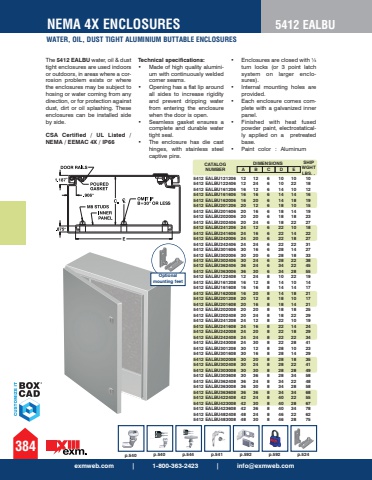

p.540 p.540 p.544 p.541 p.592 p.592 p.524%u201d%u201d%u201dThe 5412 EALBU water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. These enclosures can be installed side by side. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality aluminium with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelcaptive pins.%u2022 Enclosures are closed with %u00bcturn locks (or 3 point latchsystem on larger enclosures).%u2022 Internal mounting holes areprovided.%u2022 Each enclosure comes complete with a galvanized innerpanel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : AluminumWATER, OIL, DUST TIGHT ALUMINIUM BUTTABLE ENCLOSURES5412 EALBUexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES384Optional mounting feetCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS. .5412 EALBU121206 12 12 6 10 10 10 5412 EALBU122406 12 24 6 10 22 18 5412 EALBU161206 16 12 6 14 10 12 5412 EALBU161606 16 16 6 14 14 16 5412 EALBU162006 16 20 6 14 18 19 5412 EALBU201206 20 12 6 18 10 15 5412 EALBU201606 20 16 6 18 14 19 5412 EALBU202006 20 20 6 18 18 23 5412 EALBU202406 20 24 6 18 22 27 5412 EALBU241206 24 12 6 22 10 18 5412 EALBU241606 24 16 6 22 14 22 5412 EALBU242006 24 20 6 22 18 27 5412 EALBU242406 24 24 6 22 22 31 5412 EALBU301606 30 16 6 28 14 27 5412 EALBU302006 30 20 6 28 18 33 5412 EALBU302406 30 24 6 28 22 38 5412 EALBU362406 36 24 6 34 22 45 5412 EALBU363006 36 30 6 34 28 55 5412 EALBU122408 12 24 8 10 22 19 5412 EALBU161208 16 12 8 14 10 14 5412 EALBU161608 16 16 8 14 14 17 5412 EALBU162008 16 20 8 14 18 21 5412 EALBU201208 20 12 8 18 10 17 5412 EALBU201608 20 16 8 18 14 21 5412 EALBU202008 20 20 8 18 18 25 5412 EALBU202408 20 24 8 18 22 29 5412 EALBU241208 24 12 8 22 10 19 5412 EALBU241608 24 16 8 22 14 24 5412 EALBU242008 24 20 8 22 18 29 5412 EALBU242408 24 24 8 22 22 34 5412 EALBU243008 24 30 8 22 28 41 5412 EALBU301208 30 12 8 28 10 23 5412 EALBU301608 30 16 8 28 14 29 5412 EALBU302008 30 20 8 28 18 35 5412 EALBU302408 30 24 8 28 22 41 5412 EALBU303008 30 30 8 28 28 49 5412 EALBU303608 30 36 8 28 34 58 5412 EALBU362408 36 24 8 34 22 48 5412 EALBU363008 36 30 8 34 28 58 5412 EALBU363608 36 36 8 34 34 68 5412 EALBU422408 42 24 8 40 22 55 5412 EALBU423008 42 30 8 40 28 67 5412 EALBU423608 42 36 8 40 34 78 5412 EALBU482408 48 24 8 46 22 62 5412 EALBU483008 48 30 8 46 28 75
