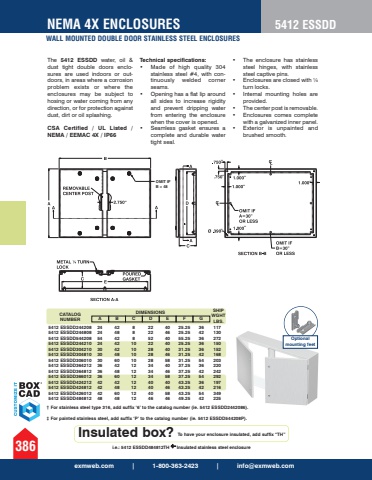

OMIT IFB < 48%u201d%u201d%u201d %u201d%u201d%u201d %u201d%u201dThe 5412 ESSDD water, oil & dust tight double doors enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has stainlesssteel hinges, with stainlesssteel captive pins.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Internal mounting holes areprovided.%u2022 The center post is removable.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Exterior is unpainted andbrushed smooth.i.e.: 5412 ESSDD484812TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201d%u2020 For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (ie. 5412 ESSDD2442086). %u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 5412 ESSDD544208P).5412 ESSDDexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES386Optional mounting feetA B C D E F GDIMENSIONS5412 ESSDD244208 24 42 8 22 40 25.25 36 117 5412 ESSDD244808 24 48 8 22 46 25.25 42 130 5412 ESSDD544208 54 42 8 52 40 55.25 36 272 5412 ESSDD244210 24 42 10 22 40 25.25 36 150 5412 ESSDD304210 30 42 10 28 40 31.25 36 152 5412 ESSDD304810 30 48 10 28 46 31.25 42 168 5412 ESSDD306010 30 60 10 28 58 31.25 54 203 5412 ESSDD364212 36 42 12 34 40 37.25 36 220 5412 ESSDD364812 36 48 12 34 46 37.25 42 242 5412 ESSDD366012 36 60 12 34 58 37.25 54 292 5412 ESSDD424212 42 42 12 40 40 43.25 36 197 5412 ESSDD424812 42 48 12 40 46 43.25 42 216 5412 ESSDD426012 42 60 12 40 58 43.25 54 349 5412 ESSDD484812 48 48 12 46 46 49.25 42 225CATALOG NUMBERSHIP WGHT LBS.WALL MOUNTED DOUBLE DOOR STAINLESS STEEL ENCLOSURES
