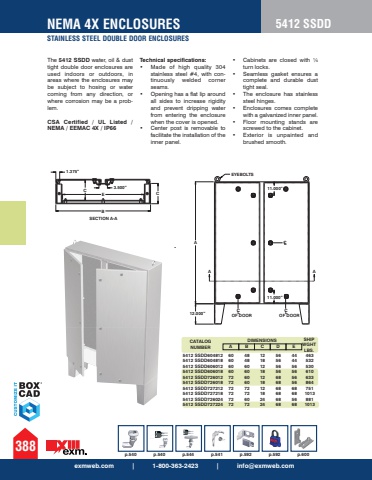

p.540 p.540 p.544 p.541 p.592 p.592 p.600CLOF DOORCLOF DOOR11.000%u201d11.000%u201dC3.500%u201d1.375%u201dA AA12.000%u201dBECSECTION A-ACLEYEBOLTSThe 5412 SSDD water, oil & dust tight double door enclosures are used indoors or outdoors, in areas where the enclosures may be subject to hosing or water coming from any direction, or where corrosion may be a problem. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Center post is removable tofacilitate the installation of theinner panel.%u2022 Cabinets are closed with %u00bcturn locks.%u2022 Seamless gasket ensures acomplete and durable dusttight seal.%u2022 The enclosure has stainlesssteel hinges.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Floor mounting stands arescrewed to the cabinet.%u2022 Exterior is unpainted andbrushed smooth.5412 SSDDexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES388STAINLESS STEEL DOUBLE DOOR ENCLOSURESA B C D EDIMENSIONS5412 SSDD604812 60 48 12 56 44 463 5412 SSDD604818 60 48 18 56 44 532 5412 SSDD606012 60 60 12 56 56 530 5412 SSDD606018 60 60 18 56 56 610 5412 SSDD726012 72 60 12 68 56 633 5412 SSDD726018 72 60 18 68 56 864 5412 SSDD727212 72 72 12 68 68 751 5412 SSDD727218 72 72 18 68 68 1013 5412 SSDD726024 72 60 24 68 56 881 5412 SSDD727224 72 72 24 68 68 1013CATALOG NUMBERSHIP WGHT LBS.
