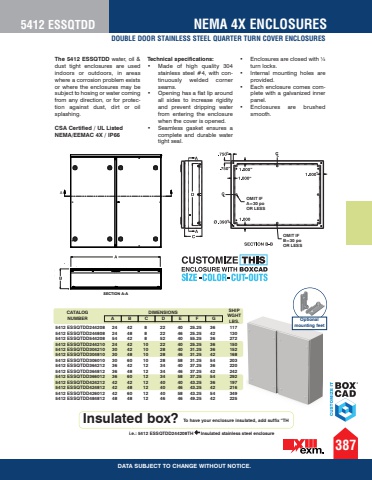

OMIT IFA=30 po OR LESSOMIT IFB=30 po OR LESS%u201d%u201d%u201d%u201d%u201d%u201dSECTION A-AAThe 5412 ESSQTDD water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed NEMA/EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Internal mounting holes areprovided.%u2022 Each enclosure comes complete with a galvanized innerpanel.%u2022 Enclosures are brushedsmooth.i.e.: 5412 ESSQTDD244208TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH5412 ESSQTDDDATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURES387Optional mounting feetCATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESSQTDD244208 24 42 8 22 40 25.25 36 117 5412 ESSQTDD244808 24 48 8 22 46 25.25 42 130 5412 ESSQTDD544208 54 42 8 52 40 55.25 36 272 5412 ESSQTDD244210 24 42 10 22 40 25.25 36 150 5412 ESSQTDD304210 30 42 10 28 40 31.25 36 152 5412 ESSQTDD304810 30 48 10 28 46 31.25 42 168 5412 ESSQTDD306010 30 60 10 28 58 31.25 54 203 5412 ESSQTDD364212 36 42 12 34 40 37.25 36 220 5412 ESSQTDD364812 36 48 12 34 46 37.25 42 242 5412 ESSQTDD366012 36 60 12 34 58 37.25 54 292 5412 ESSQTDD424212 42 42 12 40 40 43.25 36 197 5412 ESSQTDD424812 42 48 12 40 46 43.25 42 216 5412 ESSQTDD426012 42 60 12 40 58 43.25 54 349 5412 ESSQTDD484812 48 48 12 46 46 49.25 42 225DOUBLE DOOR STAINLESS STEEL QUARTER TURN COVER ENCLOSURES
