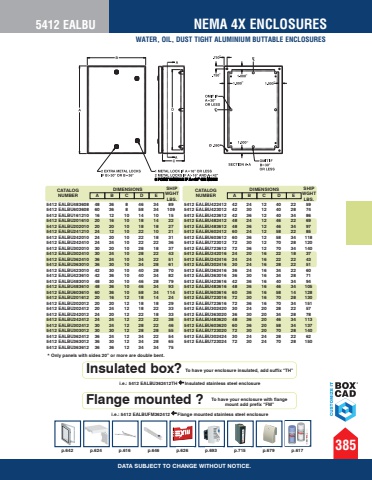

3 POINT HANDLE IF A=42%u201d OR MORE 3 POINT HANDLE IF A=42%u201d OR MORE%u201d%u201d %u201d%u201d %u201d%u201d %u201dp.642 p.624 p.616 p.646 p.626 p.693 p.715 p.679 p.617* Only panels with sides 20%u201d or more are double bent.i.e.: 5412 EALBU362412TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 5412 EALBUFM362412 %uf0b0 Flange mounted stainless steel enclosureTo have your enclosure with flange Flange mounted ? mount add prefix %u201cFM%u201d5412 EALBUWATER, OIL, DUST TIGHT ALUMINIUM BUTTABLE ENCLOSURESDATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURES385CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 EALBU483608 48 36 8 46 34 89 5412 EALBU603608 60 36 8 58 34 109 5412 EALBU161210 16 12 10 14 10 15 5412 EALBU201610 20 16 10 18 14 22 5412 EALBU202010 20 20 10 18 18 27 5412 EALBU241210 24 12 10 22 10 21 5412 EALBU242010 24 20 10 22 18 31 5412 EALBU242410 24 24 10 22 22 36 5412 EALBU302010 30 20 10 28 18 37 5412 EALBU302410 30 24 10 28 22 43 5412 EALBU362410 36 24 10 34 22 51 5412 EALBU363010 36 30 10 34 28 61 5412 EALBU423010 42 30 10 40 28 70 5412 EALBU423610 42 36 10 40 34 82 5412 EALBU483010 48 30 10 46 28 79 5412 EALBU483610 48 36 10 46 34 93 5412 EALBU603610 60 36 10 58 34 114 5412 EALBU201612 20 16 12 18 14 24 5412 EALBU202012 20 20 12 18 18 29 5412 EALBU202412 20 24 12 18 22 33 5412 EALBU242012 24 20 12 22 18 33 5412 EALBU242412 24 24 12 22 22 38 5412 EALBU302412 30 24 12 28 22 46 5412 EALBU303012 30 30 12 28 28 55 5412 EALBU362412 36 24 12 34 22 54 5412 EALBU363012 36 30 12 34 28 65 5412 EALBU363612 36 36 12 34 34 75 5412 EALBU422412 42 24 12 40 22 59 5412 EALBU423012 42 30 12 40 28 74 5412 EALBU423612 42 36 12 40 34 86 5412 EALBU482412 48 24 12 46 22 69 5412 EALBU483612 48 36 12 46 34 97 5412 EALBU602412 60 24 12 58 22 85 5412 EALBU603612 60 36 12 58 34 118 5412 EALBU723012 72 30 12 70 28 120 5412 EALBU723612 72 36 12 70 34 140 5412 EALBU242016 24 20 16 22 18 37 5412 EALBU242416 24 24 16 22 22 43 5412 EALBU302416 30 24 16 28 22 51 5412 EALBU362416 36 24 16 34 22 60 5412 EALBU363016 36 30 16 34 28 71 5412 EALBU423616 42 36 16 40 34 94 5412 EALBU483616 48 36 16 46 34 105 5412 EALBU603616 60 36 16 58 14 128 5412 EALBU723016 72 30 16 70 28 130 5412 EALBU723616 72 36 16 70 34 151 5412 EALBU302420 30 24 20 28 22 57 5412 EALBU363020 36 30 20 34 28 78 5412 EALBU483620 48 36 20 46 34 113 5412 EALBU603620 60 36 20 58 34 137 5412 EALBU723020 72 30 20 70 28 140 5412 EALBU302424 30 24 24 28 22 62 5412 EALBU723024 72 30 24 70 28 150 CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.
