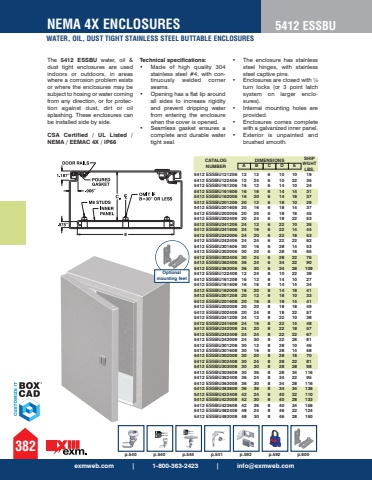

p.540 p.540 p.544 p.541 p.592 p.592 p.600%u201d%u201d%u201dThe 5412 ESSBU water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. These enclosures can be installed side by side. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has stainlesssteel hinges, with stainlesssteel captive pins.%u2022 Enclosures are closed with %u00bcturn locks (or 3 point latchsystem on larger enclosures).%u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Exterior is unpainted andbrushed smooth.5412 ESSBUexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES382WATER, OIL, DUST TIGHT STAINLESS STEEL BUTTABLE ENCLOSURESCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESSBU121206 12 12 6 10 10 19 5412 ESSBU122406 12 24 6 10 22 35 5412 ESSBU161206 16 12 6 14 10 24 5412 ESSBU161606 16 16 6 14 14 31 5412 ESSBU162006 16 20 6 14 18 37 5412 ESSBU201206 20 12 6 18 10 29 5412 ESSBU201606 20 16 6 18 14 37 5412 ESSBU202006 20 20 6 18 18 45 5412 ESSBU202406 20 24 6 18 22 53 5412 ESSBU241206 24 12 6 22 10 35 5412 ESSBU241606 24 16 6 22 14 44 5412 ESSBU242006 24 20 6 22 18 53 5412 ESSBU242406 24 24 6 22 22 62 5412 ESSBU301606 30 16 6 28 14 53 5412 ESSBU302006 30 20 6 28 18 65 5412 ESSBU302406 30 24 6 28 22 76 5412 ESSBU362406 36 24 6 34 22 90 5412 ESSBU363006 36 30 6 34 28 109 5412 ESSBU122408 12 24 8 10 22 38 5412 ESSBU161208 16 12 8 14 10 27 5412 ESSBU161608 16 16 8 14 14 34 5412 ESSBU162008 16 20 8 14 18 41 5412 ESSBU201208 20 12 8 18 10 33 5412 ESSBU201608 20 16 8 18 14 41 5412 ESSBU202008 20 20 8 18 18 49 5412 ESSBU202408 20 24 8 18 22 57 5412 ESSBU241208 24 12 8 22 10 38 5412 ESSBU241608 24 16 8 22 14 48 5412 ESSBU242008 24 20 8 22 18 57 5412 ESSBU242408 24 24 8 22 22 67 5412 ESSBU243008 24 30 8 22 28 81 5412 ESSBU301208 30 12 8 28 10 46 5412 ESSBU301608 30 16 8 28 14 58 5412 ESSBU302008 30 20 8 28 18 70 5412 ESSBU302408 30 24 8 28 22 81 5412 ESSBU303008 30 30 8 28 28 98 5412 ESSBU303608 30 36 8 28 34 116 5412 ESSBU362408 36 24 8 34 22 95 5412 ESSBU363008 36 30 8 34 28 116 5412 ESSBU363608 36 36 8 34 34 136 5412 ESSBU422408 42 24 8 40 22 110 5412 ESSBU423008 42 30 8 40 28 133 5412 ESSBU423608 42 36 8 40 34 156 5412 ESSBU482408 48 24 8 46 22 124 5412 ESSBU483008 48 30 8 46 28 150Optional mounting feet
