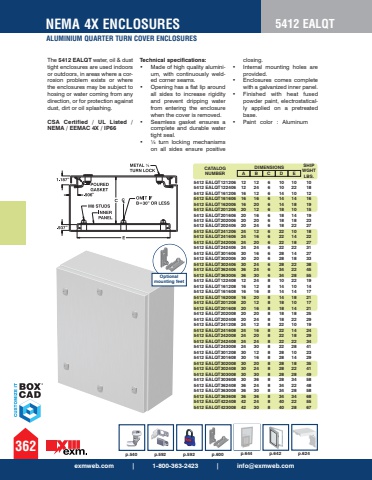

The 5412 EALQT water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality aluminium, with continuously welded corner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is removed.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 %u00bc turn locking mechanismson all sides ensure positiveclosing. %u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : Aluminum%u201d%u201d%u201dCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 EALQT121206 12 12 6 10 10 10 5412 EALQT122406 12 24 6 10 22 18 5412 EALQT161206 16 12 6 14 10 12 5412 EALQT161606 16 16 6 14 14 16 5412 EALQT162006 16 20 6 14 18 19 5412 EALQT201206 20 12 6 18 10 15 5412 EALQT201606 20 16 6 18 14 19 5412 EALQT202006 20 20 6 18 18 23 5412 EALQT202406 20 24 6 18 22 27 5412 EALQT241206 24 12 6 22 10 18 5412 EALQT241606 24 16 6 22 14 22 5412 EALQT242006 24 20 6 22 18 27 5412 EALQT242406 24 24 6 22 22 31 5412 EALQT301606 30 16 6 28 14 27 5412 EALQT302006 30 20 6 28 18 33 5412 EALQT302406 30 24 6 28 22 38 5412 EALQT362406 36 24 6 34 22 45 5412 EALQT363006 36 30 6 34 28 55 5412 EALQT122408 12 24 8 10 22 19 5412 EALQT161208 16 12 8 14 10 14 5412 EALQT161608 16 16 8 14 14 17 5412 EALQT162008 16 20 8 14 18 21 5412 EALQT201208 20 12 8 18 10 17 5412 EALQT201608 20 16 8 18 14 21 5412 EALQT202008 20 20 8 18 18 25 5412 EALQT202408 20 24 8 18 22 29 5412 EALQT241208 24 12 8 22 10 19 5412 EALQT241608 24 16 8 22 14 24 5412 EALQT242008 24 20 8 22 18 29 5412 EALQT242408 24 24 8 22 22 34 5412 EALQT243008 24 30 8 22 28 41 5412 EALQT301208 30 12 8 28 10 23 5412 EALQT301608 30 16 8 28 14 29 5412 EALQT302008 30 20 8 28 18 35 5412 EALQT302408 30 24 8 28 22 41 5412 EALQT303008 30 30 8 28 28 49 5412 EALQT303608 30 36 8 28 34 58 5412 EALQT362408 36 24 8 34 22 48 5412 EALQT363008 36 30 8 34 28 58 5412 EALQT363608 36 36 8 34 34 68 5412 EALQT422408 42 24 8 40 22 55 5412 EALQT423008 42 30 8 40 28 67p.540 p.592 p.592 p.600 p.644 p.642 p.624Optional mounting feetexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURESALUMINIUM QUARTER TURN COVER ENCLOSURES5412 EALQT
