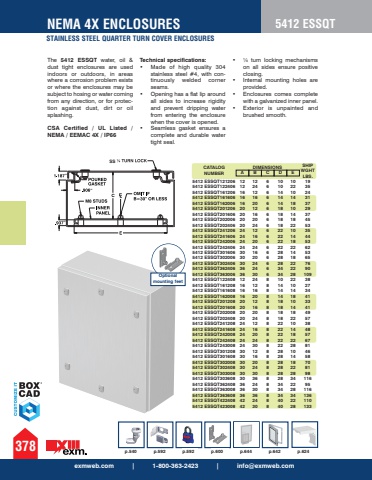

%u201d%u201d%u201dSSp.540 p.592 p.592 p.600 p.644 p.642 p.624The 5412 ESSQT water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded cornerseams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 %u00bc turn locking mechanismson all sides ensure positiveclosing.%u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Exterior is unpainted andbrushed smooth.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESSQT121206 12 12 6 10 10 19 5412 ESSQT122406 12 24 6 10 22 35 5412 ESSQT161206 16 12 6 14 10 24 5412 ESSQT161606 16 16 6 14 14 31 5412 ESSQT162006 16 20 6 14 18 37 5412 ESSQT201206 20 12 6 18 10 29 5412 ESSQT201606 20 16 6 18 14 37 5412 ESSQT202006 20 20 6 18 18 45 5412 ESSQT202406 20 24 6 18 22 53 5412 ESSQT241206 24 12 6 22 10 35 5412 ESSQT241606 24 16 6 22 14 44 5412 ESSQT242006 24 20 6 22 18 53 5412 ESSQT242406 24 24 6 22 22 62 5412 ESSQT301606 30 16 6 28 14 53 5412 ESSQT302006 30 20 6 28 18 65 5412 ESSQT302406 30 24 6 28 22 76 5412 ESSQT362406 36 24 6 34 22 90 5412 ESSQT363006 36 30 6 34 28 109 5412 ESSQT122408 12 24 8 10 22 38 5412 ESSQT161208 16 12 8 14 10 27 5412 ESSQT161608 16 16 8 14 14 34 5412 ESSQT162008 16 20 8 14 18 41 5412 ESSQT201208 20 12 8 18 10 33 5412 ESSQT201608 20 16 8 18 14 41 5412 ESSQT202008 20 20 8 18 18 49 5412 ESSQT202408 20 24 8 18 22 57 5412 ESSQT241208 24 12 8 22 10 38 5412 ESSQT241608 24 16 8 22 14 48 5412 ESSQT242008 24 20 8 22 18 57 5412 ESSQT242408 24 24 8 22 22 67 5412 ESSQT243008 24 30 8 22 28 81 5412 ESSQT301208 30 12 8 28 10 46 5412 ESSQT301608 30 16 8 28 14 58 5412 ESSQT302008 30 20 8 28 18 70 5412 ESSQT302408 30 24 8 28 22 81 5412 ESSQT303008 30 30 8 28 28 98 5412 ESSQT303608 30 36 8 28 34 116 5412 ESSQT362408 36 24 8 34 22 95 5412 ESSQT363008 36 30 8 34 28 116 5412 ESSQT363608 36 36 8 34 34 136 5412 ESSQT422408 42 24 8 40 22 110 5412 ESSQT423008 42 30 8 40 28 133Optional mounting feet5412 ESSQTexmweb.com | 1-800-363-2423 | [email protected] 4X ENCLOSURES378STAINLESS STEEL QUARTER TURN COVER ENCLOSURES
