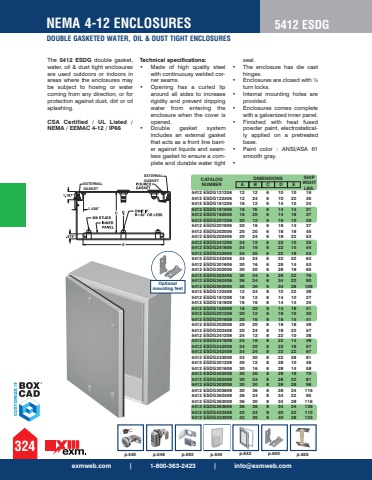

EXTERNALGASKETEXTERNAL GASKET1.406%u201d%u201d%u201dThe 5412 ESDG double gasket, water, oil & dust tight enclosures are used outdoors or indoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel with continuousy welded corner seams. %u2022 Opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Double gasket system includes an external gasket that acts as a front line barrier against liquids and seamless gasket to ensure a complete and durable water tight seal. %u2022 The enclosure has die cast hinges. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u2022exmweb.com | 1-800-363-2423 | [email protected] mounting feetNEMA 4-12 ENCLOSURESDOUBLE GASKETED WATER, OIL & DUST TIGHT ENCLOSURES5412 ESDGCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESDG121206 12 12 6 10 10 19 5412 ESDG122406 12 24 6 10 22 35 5412 ESDG161206 16 12 6 14 10 24 5412 ESDG161606 16 16 6 14 14 31 5412 ESDG162006 16 20 6 14 18 37 5412 ESDG201206 20 12 6 18 10 29 5412 ESDG201606 20 16 6 18 14 37 5412 ESDG202006 20 20 6 18 18 45 5412 ESDG202406 20 24 6 18 22 53 5412 ESDG241206 24 12 6 22 10 35 5412 ESDG241606 24 16 6 22 14 44 5412 ESDG242006 24 20 6 22 18 53 5412 ESDG242406 24 24 6 22 22 62 5412 ESDG301606 30 16 6 28 14 53 5412 ESDG302006 30 20 6 28 18 65 5412 ESDG302406 30 24 6 28 22 76 5412 ESDG362406 36 24 6 34 22 90 5412 ESDG363006 36 30 6 34 28 109 5412 ESDG122408 12 24 8 10 22 38 5412 ESDG161208 16 12 8 14 10 27 5412 ESDG161608 16 16 8 14 14 34 5412 ESDG162008 16 20 8 14 18 41 5412 ESDG201208 20 12 8 18 10 33 5412 ESDG201608 20 16 8 18 14 41 5412 ESDG202008 20 20 8 18 18 49 5412 ESDG202408 20 24 8 18 22 57 5412 ESDG241208 24 12 8 22 10 38 5412 ESDG241608 24 16 8 22 14 48 5412 ESDG242008 24 20 8 22 18 57 5412 ESDG242408 24 24 8 22 22 67 5412 ESDG243008 24 30 8 22 28 81 5412 ESDG301208 30 12 8 28 10 46 5412 ESDG301608 30 16 8 28 14 58 5412 ESDG302008 30 20 8 28 18 70 5412 ESDG302408 30 24 8 28 22 81 5412 ESDG303008 30 30 8 28 28 98 5412 ESDG303608 30 36 8 28 34 116 5412 ESDG362408 36 24 8 34 22 95 5412 ESDG363008 36 30 8 34 28 116 5412 ESDG363608 36 36 8 34 34 136 5412 ESDG422408 42 24 8 40 22 110 5412 ESDG423008 42 30 8 40 28 133 p.540 p.546 p.592 p.644 p.642 p.600 p.625
