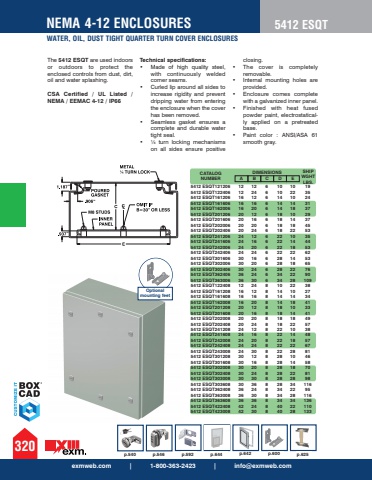

%u201d%u201d%u201dThe 5412 ESQT are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover has been removed. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 %u00bc turn locking mechanisms on all sides ensure positive closing. %u2022 The cover is completely removable. %u2022 Internal mounting holes are provided. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.p.592 p.644 p.642 p.625exmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESQT121206 12 12 6 10 10 19 5412 ESQT122406 12 24 6 10 22 35 5412 ESQT161206 16 12 6 14 10 24 5412 ESQT161606 16 16 6 14 14 31 5412 ESQT162006 16 20 6 14 18 37 5412 ESQT201206 20 12 6 18 10 29 5412 ESQT201606 20 16 6 18 14 37 5412 ESQT202006 20 20 6 18 18 45 5412 ESQT202406 20 24 6 18 22 53 5412 ESQT241206 24 12 6 22 10 35 5412 ESQT241606 24 16 6 22 14 44 5412 ESQT242006 24 20 6 22 18 53 5412 ESQT242406 24 24 6 22 22 62 5412 ESQT301606 30 16 6 28 14 53 5412 ESQT302006 30 20 6 28 18 65 5412 ESQT302406 30 24 6 28 22 76 5412 ESQT362406 36 24 6 34 22 90 5412 ESQT363006 36 30 6 34 28 109 5412 ESQT122408 12 24 8 10 22 38 5412 ESQT161208 16 12 8 14 10 27 5412 ESQT161608 16 16 8 14 14 34 5412 ESQT162008 16 20 8 14 18 41 5412 ESQT201208 20 12 8 18 10 33 5412 ESQT201608 20 16 8 18 14 41 5412 ESQT202008 20 20 8 18 18 49 5412 ESQT202408 20 24 8 18 22 57 5412 ESQT241208 24 12 8 22 10 38 5412 ESQT241608 24 16 8 22 14 48 5412 ESQT242008 24 20 8 22 18 57 5412 ESQT242408 24 24 8 22 22 67 5412 ESQT243008 24 30 8 22 28 81 5412 ESQT301208 30 12 8 28 10 46 5412 ESQT301608 30 16 8 28 14 58 5412 ESQT302008 30 20 8 28 18 70 5412 ESQT302408 30 24 8 28 22 81 5412 ESQT303008 30 30 8 28 28 98 5412 ESQT303608 30 36 8 28 34 116 5412 ESQT362408 36 24 8 34 22 95 5412 ESQT363008 36 30 8 34 28 116 5412 ESQT363608 36 36 8 34 34 136 5412 ESQT422408 42 24 8 40 22 110 5412 ESQT423008 42 30 8 40 28 133 Optional mounting feetNEMA 4-12 ENCLOSURESWATER, OIL, DUST TIGHT QUARTER TURN COVER ENCLOSURES5412 ESQTp.540 p.546 p.600
