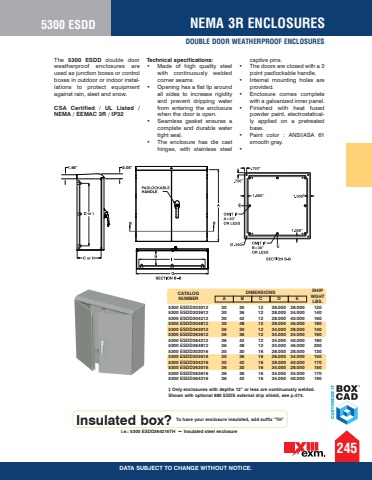

245DATA SUBJECT TO CHANGE WITHOUT NOTICE.I1.56%u201d 2.05%u201d %u201d%u201d%u201d %u201d%u201d%u201dNEMA 3R ENCLOSURESDOUBLE DOOR WEATHERPROOF ENCLOSURES5300 ESDDThe 5300 ESDD double door weatherproof enclosures are used as junction boxes or control boxes in outdoor or indoor installations to protect equipment against rain, sleet and snow. CSA Certified / UL Listed / NEMA / EEMAC 3R / IP32Technical specifications:%u2022 Made of high quality steel with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 The doors are closed with a 3 point padlockable handle. %u2022 Internal mounting holes are provided. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u20225300 ESDD303012 30 30 12 28.000 28.000 120 5300 ESDD303612 30 36 12 28.000 34.000 140 5300 ESDD304212 30 42 12 28.000 40.000 160 5300 ESDD304812 30 48 12 28.000 46.000 180 5300 ESDD363012 36 30 12 34.000 28.000 140 5300 ESDD363612 36 36 12 34.000 34.000 160 5300 ESDD364212 36 42 12 34.000 40.000 180 5300 ESDD364812 36 48 12 34.000 46.000 200 5300 ESDD303016 30 30 16 28.000 28.000 130 5300 ESDD303616 30 36 16 28.000 34.000 150 5300 ESDD304216 30 42 16 28.000 40.000 170 5300 ESDD363016 36 30 16 34.000 28.000 150 5300 ESDD363616 36 36 16 34.000 34.000 170 5300 ESDD364216 36 42 16 34.000 40.000 190 %u2021 Only enclosures with depths 12%u201d or less are continuously welded. Shown with optional 880 ESDS external drip shield, see p.474.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.i.e.: 5300 ESDD364216TH %uf0b0 Insulated steel enclosure Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201d
