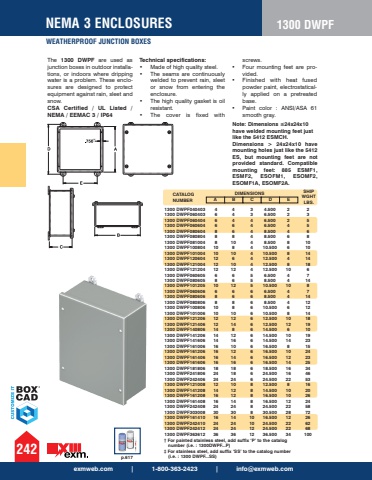

Page 274 - Demo

exmweb.com | 1-800-363-2423 | [email protected] 3 ENCLOSURESWEATHERPROOF JUNCTION BOXES2421300 DWPF%u201dThe 1300 DWPF are used as junction boxes in outdoor installations, or indoors where dripping water is a problem. These enclosures are designed to protect equipment against rain, sleet and snow. CSA Certified / UL Listed / NEMA / EEMAC 3 / IP64Technical specifications:%u2022 Made of high quality steel.%u2022 The seams are continuouslywelded to prevent rain, sleetor snow from entering theenclosure.%u2022 The high quality gasket is oilresistant.%u2022 The cover is fixed withscrews. %u2022 Four mounting feet are provided.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.p.617CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1300 DWPF040403 4 4 3 4.500 2 2 1300 DWPF060403 6 4 3 6.500 2 3 1300 DWPF060404 6 4 4 6.500 2 5 1300 DWPF060604 6 6 4 6.500 4 5 1300 DWPF080604 8 6 4 8.500 4 6 1300 DWPF080804 8 8 4 8.500 6 8 1300 DWPF081004 8 10 4 8.500 8 10 1300 DWPF100804 10 8 4 10.500 6 10 1300 DWPF101004 10 10 4 10.500 8 14 1300 DWPF120604 12 6 4 12.500 4 14 1300 DWPF121004 12 10 4 12.500 8 18 1300 DWPF121204 12 12 4 12.500 10 6 1300 DWPF060605 6 6 5 6.500 4 7 1300 DWPF080605 8 6 5 8.500 4 14 1300 DWPF101205 10 12 5 10.500 10 8 1300 DWPF060606 6 6 6 6.500 4 7 1300 DWPF080606 8 6 6 8.500 4 14 1300 DWPF080806 8 8 6 8.500 4 12 1300 DWPF100806 10 8 6 10.500 6 12 1300 DWPF101006 10 10 6 10.500 8 14 1300 DWPF121206 12 12 6 12.500 10 18 1300 DWPF121406 12 14 6 12.500 12 19 1300 DWPF140806 14 8 6 14.500 6 10 1300 DWPF141206 14 12 6 14.500 10 19 1300 DWPF141606 14 16 6 14.500 14 23 1300 DWPF161006 16 10 6 16.500 8 15 1300 DWPF161206 16 12 6 16.500 10 24 1300 DWPF161406 16 14 6 16.500 12 23 1300 DWPF161606 16 16 6 16.500 14 25 1300 DWPF181806 18 18 6 18.500 16 34 1300 DWPF241806 24 18 6 24.500 16 46 1300 DWPF242406 24 24 6 24.500 22 53 1300 DWPF121008 12 10 8 12.500 8 16 1300 DWPF141208 14 12 8 14.500 10 20 1300 DWPF161208 16 12 8 16.500 10 26 1300 DWPF161408 16 14 8 16.500 12 24 1300 DWPF242408 24 24 8 24.500 22 58 1300 DWPF303008 30 30 8 30.500 28 72 1300 DWPF161410 16 14 10 16.500 12 26 1300 DWPF242410 24 24 10 24.500 22 62 1300 DWPF242412 24 24 12 24.500 22 68 1300 DWPF363612 36 36 12 36.500 34 100 %u2020 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (i.e. : 1300DWPF...P) %u2021 For stainless steel, add suffix %u2018SS%u2019 to the catalog number (i.e. : 1300 DWPF...SS)Note: Dimensions %u226424x24x10 have welded mounting feet just like the 5412 ESMCH. Dimensions > 24x24x10 have mounting holes just like the 5412 ES, but mounting feet are not provided standard. Compatible mounting feet: 885 ESMF1, ESMF2, ESOFM1, ESOMF2, ESOMF1A, ESOMF2A.
