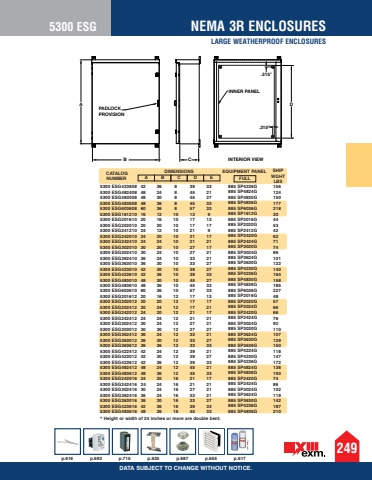

2495300 ESG NEMA 3R ENCLOSURESDATA SUBJECT TO CHANGE WITHOUT NOTICE.INNER PANEL%u201d.315%u201d.315%u201dAINTERIOR VIEWDB CPADLOCK PROVISIONp.616 p.693* Height or width of 24 inches or more are double bent.p.715 p.625 p.687 p.655 p.617LARGE WEATHERPROOF ENCLOSURES CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS5300 ESG423608 42 36 8 39 33 156 5300 ESG482408 48 24 8 45 21 124 5300 ESG483008 48 30 8 45 27 150 5300 ESG483608 48 36 8 45 33 177 5300 ESG603608 60 36 8 57 33 218 5300 ESG161210 16 12 10 13 9 30 5300 ESG201610 20 16 10 17 13 44 5300 ESG202010 20 20 10 17 17 53 5300 ESG241210 24 12 10 21 9 42 5300 ESG242010 24 20 10 21 17 62 5300 ESG242410 24 24 10 21 21 71 5300 ESG302010 30 20 10 27 17 74 5300 ESG302410 30 24 10 27 21 86 5300 ESG362410 36 24 10 33 21 101 5300 ESG363010 36 30 10 33 27 122 5300 ESG423010 42 30 10 39 27 140 5300 ESG423610 42 36 10 39 33 164 5300 ESG483010 48 30 10 45 27 158 5300 ESG483610 48 36 10 45 33 185 5300 ESG603610 60 36 10 57 33 227 5300 ESG201612 20 16 12 17 13 48 5300 ESG202012 20 20 12 17 17 57 5300 ESG202412 20 24 12 17 21 66 5300 ESG242012 24 20 12 21 17 66 5300 ESG242412 24 24 12 21 21 76 5300 ESG302412 30 24 12 27 21 92 5300 ESG303012 30 30 12 27 27 110 5300 ESG362412 36 24 12 33 21 107 5300 ESG363012 36 30 12 33 27 129 5300 ESG363612 36 36 12 33 33 150 5300 ESG422412 42 24 12 39 21 118 5300 ESG423012 42 30 12 39 27 147 5300 ESG423612 42 36 12 39 33 172 5300 ESG482412 48 24 12 45 21 138 5300 ESG483612 48 36 12 45 33 193 5300 ESG242016 24 20 16 21 17 74 5300 ESG242416 24 24 16 21 21 86 5300 ESG302416 30 24 16 27 21 102 5300 ESG362416 36 24 16 33 21 119 5300 ESG363016 36 30 16 33 27 142 5300 ESG423616 42 36 16 39 33 187 5300 ESG483616 48 36 16 45 33 210 885 SP4236G 885 SP4824G 885 SP4830G 885 SP4836G 885 SP6036G 885 SP1612G 885 SP2016G 885 SP2020G 885 SP2412G 885 SP2420G 885 SP2424G 885 SP3020G 885 SP3024G 885 SP3624G 885 SP3630G 885 SP4230G 885 SP4236G 885 SP4830G 885 SP4836G 885 SP6036G 885 SP2016G 885 SP2020G 885 SP2024G 885 SP2420G 885 SP2424G 885 SP3024G 885 SP3030G 885 SP3624G 885 SP3630G 885 SP3636G 885 SP4224G 885 SP4230G 885 SP4236G 885 SP4824G 885 SP4836G 885 SP2420G 885 SP2424G 885 SP3024G 885 SP3624G 885 SP3630G 885 SP4236G 885 SP4836GFULLEQUIPMENT PANEL
