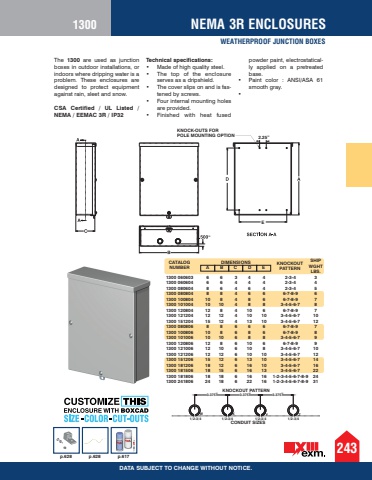

243NEMA 3R ENCLOSURESWEATHERPROOF JUNCTION BOXES1300DATA SUBJECT TO CHANGE WITHOUT NOTICE.EKNOCK-OUTS FOR POLE MOUNTING OPTION 2.25%u201d%u201dp.628 p.628CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.KNOCKOUT PATTERN1300 060603 6 6 3 4 4 2-3-4 3 1300 060604 6 6 4 4 4 2-3-4 4 1300 080604 8 6 4 6 4 2-3-4 5 1300 080804 8 8 4 6 6 6-7-8-9 6 1300 100804 10 8 4 8 6 6-7-8-9 7 1300 101004 10 10 4 8 8 3-4-5-6-7 8 1300 120804 12 8 4 10 6 6-7-8-9 7 1300 121204 12 12 4 10 10 3-4-5-6-7 10 1300 151204 15 12 4 13 10 3-4-5-6-7 12 1300 080806 8 8 6 6 6 6-7-8-9 7 1300 100806 10 8 6 8 6 6-7-8-9 8 1300 101006 10 10 6 8 8 3-4-5-6-7 9 1300 120806 12 8 6 10 6 6-7-8-9 9 1300 121006 12 10 6 10 8 3-4-5-6-7 10 1300 121206 12 12 6 10 10 3-4-5-6-7 12 1300 151206 15 12 6 13 10 3-4-5-6-7 14 1300 181206 18 12 6 16 10 3-4-5-6-7 16 1300 181506 18 15 6 16 13 3-4-5-6-7 22 1300 181806 18 18 6 16 16 1-2-3-4-5-6-7-8-9 24 1300 241806 24 18 6 22 16 1-2-3-4-5-6-7-8-9 313.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/4p.617The 1300 are used as junction boxes in outdoor installations, or indoors where dripping water is a problem. These enclosures are designed to protect equipment against rain, sleet and snow. CSA Certified / UL Listed / NEMA / EEMAC 3R / IP32Technical specifications: %u2022 Made of high quality steel. %u2022 The top of the enclosure serves as a dripshield. %u2022 The cover slips on and is fastened by screws. %u2022 Four internal mounting holes are provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u2022
