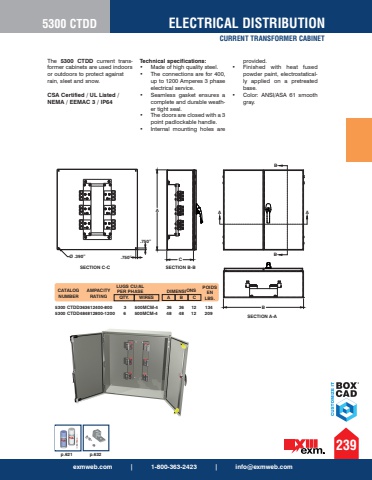

239exmweb.com | 1-800-363-2423 | [email protected] p.632The 5300 CTDD current transformer cabinets are used indoors or outdoors to protect against rain, sleet and snow. CSA Certified / UL Listed / NEMA / EEMAC 3 / IP64 Technical specifications:%u2022 Made of high quality steel. %u2022 The connections are for 400, up to 1200 Amperes 3 phase electrical service. %u2022 Seamless gasket ensures a complete and durable weather tight seal. %u2022 The doors are closed with a 3 point padlockable handle. %u2022 Internal mounting holes are provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Color: ANSI/ASA 61 smooth gray.A ABBACBSECTION A-ASECTION B-B%u00d8 .390%u201dSECTION C-C.750%u201d.750%u201dCATALOG NUMBER A B CDIMENSIONSPOIDS EN LBS.ELECTRICAL DISTRIBUTIONCURRENT TRANSFORMER CABINET5300 CTDDAMPACITY RATING QTY. WIRESLUGS CU/AL PER PHASE5300 CTDD363612400-800 3 500MCM-4 36 36 12 134 5300 CTDD484812800-1200 6 500MCM-4 48 48 12 209
