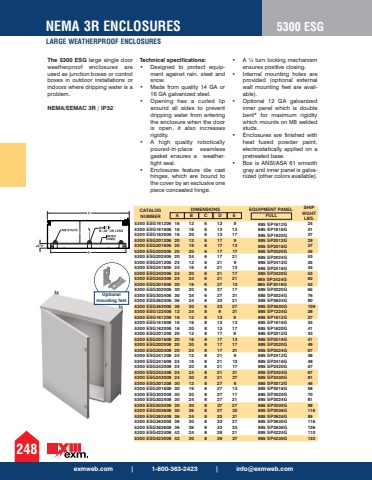

exmweb.com | 1-800-363-2423 | [email protected] 3R ENCLOSURES LARGE WEATHERPROOF ENCLOSURES2485300 ESGThe 5300 ESG large single door weatherproof enclosures are used as junction boxes or control boxes in outdoor installations or indoors where dripping water is a problem. NEMA/EEMAC 3R / IP32 Technical specifications: %u2022 Designed to protect equipment against rain, sleet and snow. %u2022 Made from quality 14 GA or 16 GA galvanized steel. %u2022 Opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. %u2022 A high quality robotically poured-in-place seamless gasket ensures a weathertight seal. %u2022 Enclosures feature die cast hinges, which are bound to the cover by an exclusive one piece concealed hinge. %u2022 A %u00bc turn locking mechanism ensures positive closing. %u2022 Internal mounting holes are provided (optional external wall mounting feet are available). %u2022 Option al 12 GA galvanized inner panel which is double bent* for maximum rigidity which mounts on M8 welded studs. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray and inner panel is galvanized (other colors available). %u201dCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5300 ESG161206 16 12 6 13 9 24 5300 ESG161606 16 16 6 13 13 31 5300 ESG162006 16 20 6 13 17 37 5300 ESG201206 20 12 6 17 9 29 5300 ESG201606 20 16 6 17 13 37 5300 ESG202006 20 20 6 17 17 45 5300 ESG202406 20 24 6 17 21 53 5300 ESG241206 24 12 6 21 9 35 5300 ESG241606 24 16 6 21 13 44 5300 ESG242006 24 20 6 21 17 53 5300 ESG242406 24 24 6 21 21 62 5300 ESG301606 30 16 6 27 13 53 5300 ESG302006 30 20 6 27 17 65 5300 ESG302406 30 24 6 27 21 76 5300 ESG362406 36 24 6 33 21 90 5300 ESG363006 36 30 6 33 27 109 5300 ESG122408 12 24 8 9 21 38 5300 ESG161208 16 12 8 13 9 27 5300 ESG161608 16 16 8 13 13 34 5300 ESG162008 16 20 8 13 17 41 5300 ESG201208 20 12 8 17 9 33 5300 ESG201608 20 16 8 17 13 41 5300 ESG202008 20 20 8 17 17 49 5300 ESG202408 20 24 8 17 21 57 5300 ESG241208 24 12 8 21 9 38 5300 ESG241608 24 16 8 21 13 48 5300 ESG242008 24 20 8 21 17 57 5300 ESG242408 24 24 8 21 21 67 5300 ESG243008 24 30 8 21 27 81 5300 ESG301208 30 12 8 27 9 46 5300 ESG301608 30 16 8 27 13 58 5300 ESG302008 30 20 8 27 17 70 5300 ESG302408 30 24 8 27 21 81 5300 ESG303008 30 30 8 27 27 98 5300 ESG303608 30 36 8 27 33 116 5300 ESG362408 36 24 8 33 21 95 5300 ESG363008 36 30 8 33 27 116 5300 ESG363608 36 36 8 33 33 136 5300 ESG422408 42 24 8 39 21 110 5300 ESG423008 42 30 8 39 27 133 Optional mounting feet885 SP1612G 885 SP1616G 885 SP1620G 885 SP2012G 885 SP2016G 885 SP2020G 885 SP2024G 885 SP2412G 885 SP2416G 885 SP2420G 885 SP2424G 885 SP3016G 885 SP3020G 885 SP3024G 885 SP3624G 885 SP3630G 885 SP1224G 885 SP1612G 885 SP1616G 885 SP1620G 885 SP2012G 885 SP2016G 885 SP2020G 885 SP2024G 885 SP2412G 885 SP2416G 885 SP2420G 885 SP2424G 885 SP2430G 885 SP3012G 885 SP3016G 885 SP3020G 885 SP3024G 885 SP3030G 885 SP3036G 885 SP3624G 885 SP3630G 885 SP3636G 885 SP4224G 885 SP4230GFULLEQUIPMENT PANEL
