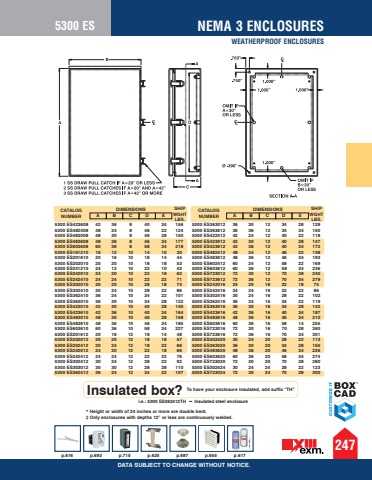

5300 ES247NEMA 3 ENCLOSURESDATA SUBJECT TO CHANGE WITHOUT NOTICE.%u201d %u201d%u201d%u201d%u201d%u201d%u201dp.616 p.693CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5300 ES423608 42 36 8 40 34 156 5300 ES482408 48 24 8 46 22 124 5300 ES483008 48 30 8 46 28 150 5300 ES483608 48 36 8 46 34 177 5300 ES603608 60 36 8 58 34 218 5300 ES161210 16 12 10 14 10 30 5300 ES201610 20 16 10 18 14 44 5300 ES202010 20 20 10 18 18 53 5300 ES241210 24 12 10 22 10 42 5300 ES242010 24 20 10 22 18 62 5300 ES242410 24 24 10 22 22 71 5300 ES302010 30 20 10 28 18 74 5300 ES302410 30 24 10 28 22 86 5300 ES362410 36 24 10 34 22 101 5300 ES363010 36 30 10 34 28 122 5300 ES423010 42 30 10 40 28 140 5300 ES423610 42 36 10 40 34 164 5300 ES483010 48 30 10 46 28 158 5300 ES483610 48 36 10 46 34 185 5300 ES603610 60 36 10 58 34 227 5300 ES201612 20 16 12 18 14 48 5300 ES202012 20 20 12 18 18 57 5300 ES202412 20 24 12 18 22 66 5300 ES242012 24 20 12 22 18 66 5300 ES242412 24 24 12 22 22 76 5300 ES302412 30 24 12 28 22 92 5300 ES303012 30 30 12 28 28 110 5300 ES362412 36 24 12 34 22 107 5300 ES363012 36 30 12 34 28 129 5300 ES363612 36 36 12 34 34 150 5300 ES422412 42 24 12 40 22 118 5300 ES423012 42 30 12 40 28 147 5300 ES423612 42 36 12 40 34 172 5300 ES482412 48 24 12 46 22 138 5300 ES483612 48 36 12 46 34 193 5300 ES602412 60 24 12 58 22 169 5300 ES603612 60 36 12 58 34 236 5300 ES723012 72 30 12 70 28 240 5300 ES723612 72 36 12 70 34 279 5300 ES242016 24 20 16 22 18 74 5300 ES242416 24 24 16 22 22 86 5300 ES302416 30 24 16 28 22 102 5300 ES362416 36 24 16 34 22 119 5300 ES363016 36 30 16 34 28 142 5300 ES423616 42 36 16 40 34 187 5300 ES483616 48 36 16 46 34 210 5300 ES603616 60 36 16 58 14 255 5300 ES723016 72 30 16 70 28 260 5300 ES723616 72 36 16 70 34 301 5300 ES302420 30 24 20 28 22 113 5300 ES363020 36 30 20 34 28 155 5300 ES483620 48 36 20 46 34 226 5300 ES603620 60 36 20 58 34 274 5300 ES723020 72 30 20 70 28 280 5300 ES302424 30 24 24 28 22 123 5300 ES723024 72 30 24 70 28 300 * Height or width of 24 inches or more are double bent. %u2021 Only enclosures with depths 12%u201d or less are continuously welded.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.p.715 p.625 p.687 p.655 p.617i.e.: 5300 ES362412TH %uf0b0 Insulated steel enclosure Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201dWEATHERPROOF ENCLOSURES
