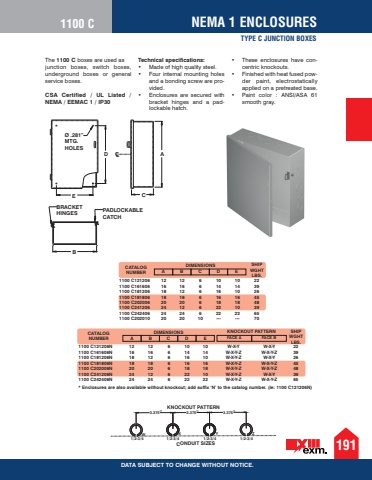

1911100 VEDATA SUBJECT TO CHANGE WITHOUT NOTICE.1100 C NEMA 1 ENCLOSURESTYPE C JUNCTION BOXESThe 1100 C boxes are used as junction boxes, switch boxes, underground boxes or general service boxes. CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30Technical specifications: %u2022 Made of high quality steel. %u2022 Four internal mounting holes and a bonding screw are provided. %u2022 Enclosures are secured with bracket hinges and a padlockable hatch. %u2022 These enclosures have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. %u00d8 .281%u201dMTG.HOLESDEBRACKETHINGES PADLOCKABLECATCHCCL AB1100 C121206 12 12 6 10 10 22 1100 C161606 16 16 6 14 14 39 1100 C181206 18 12 6 16 10 26 1100 C181806 18 18 6 16 16 45 1100 C202006 20 20 6 18 18 48 1100 C241206 24 12 6 22 10 39 1100 C242406 24 24 6 22 22 65 1100 C202010 20 20 10 --- --- 70CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1100 C121206N 12 12 6 10 10 W-X-Y W-X-Y 22 1100 C161606N 16 16 6 14 14 W-X-Y-Z W-X-Y-Z 39 1100 C181206N 18 12 6 16 10 W-X-Y-Z W-X-Y 26 1100 C181806N 18 18 6 16 16 W-X-Y-Z W-X-Y-Z 45 1100 C202006N 20 20 6 18 18 W-X-Y-Z W-X-Y-Z 48 1100 C241206N 24 12 6 22 10 W-X-Y-Z W-X-Y 39 1100 C242406N 24 24 6 22 22 W-X-Y-Z W-X-Y-Z 65 KNOCKOUT PATTERNFACE A FACE B3.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/4* Enclosures are also available without knockout; add suffix %u2018N%u2019 to the catalog number. (ie: 1100 C121206N)
